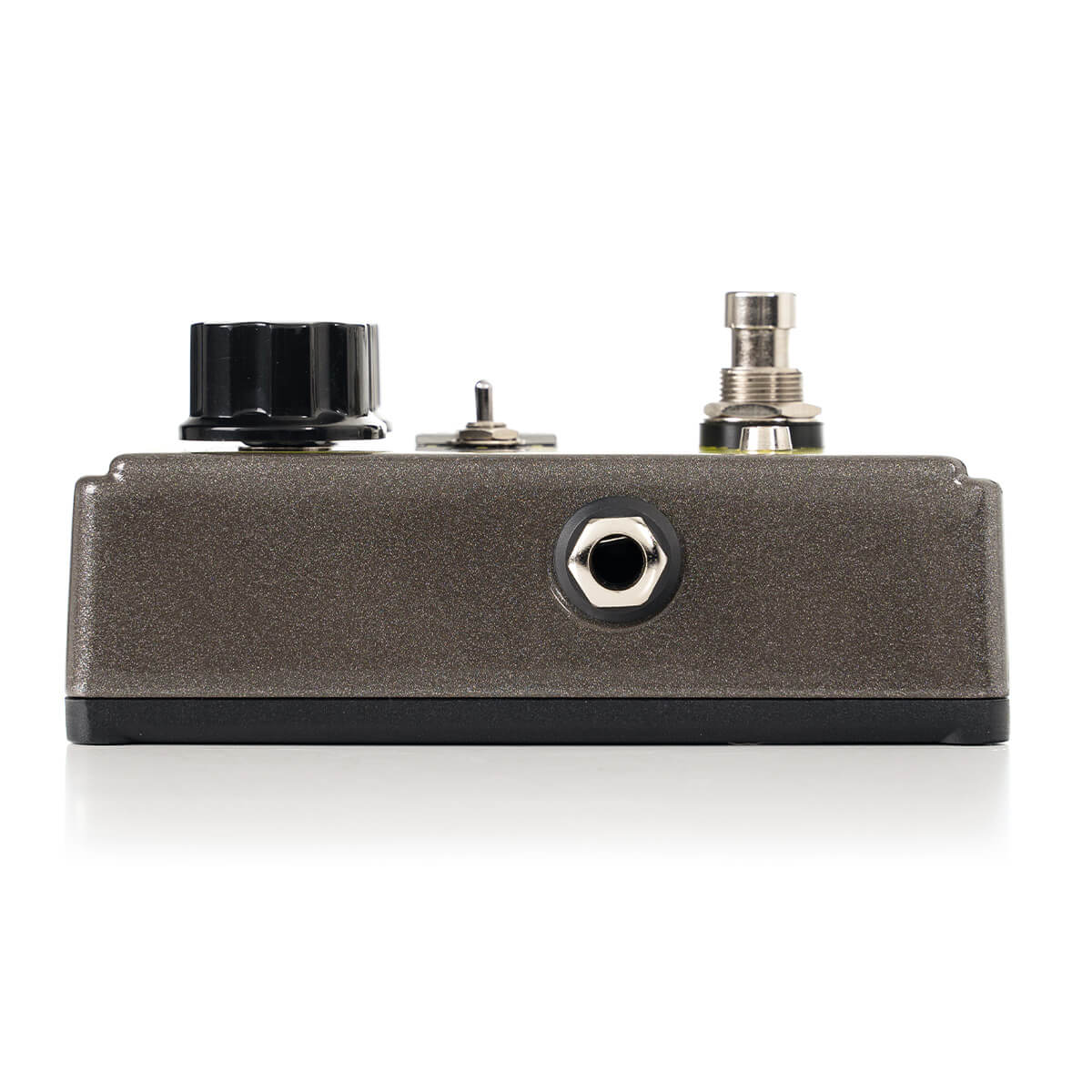

DIGITECH - DOD Overdrive 250 50th Anniv. Ltd. Edition

Ref: DG DOD250ANNIV

DIGITECH - DOD Overdrive 250 50th Anniv. Ltd. Edition

50th Anniversary Limited EditionHand-built in the USA — only 1,974 units will be made!3 Overdrives in OneSwitch between vintage-authentic SILICON clipping, Ge/ASYM Germanium asymmetrical clipping, or LIFT for no diode clipping for either clean boost use or op-amp rail clipping at higher levels.Mod-Friendly ComponentsEquipped with a socketed..." Leia mais

EM STOCK

€ 279,00

ADICIONAR

50th Anniversary Limited Edition

Hand-built in the USA — only 1,974 units will be made!

3 Overdrives in One

Switch between vintage-authentic SILICON clipping, Ge/ASYM Germanium asymmetrical clipping, or LIFT for no diode clipping for either clean boost use or op-amp rail clipping at higher levels.

Mod-Friendly Components

Equipped with a socketed LM741 op-amp and through-hole components for easier modding just as the original 250 were known for.

DIMENSIONS	4.68” (11.88cm) x 2.63” (6.68cm) x 2.25” (5.71cm) / (L x W x H) - (Jack W = 2.92” (7.41cm))
WEIGHT	0.60 lbs. (272g)
INPUT	1/4” Instrument Phone Jack
INPUT IMPEDANCE:	>300kΩ typical
OUTPUT:	1/4” Instrument Phone Jack
OUTPUT IMPEDANCE:	9.1kΩ – 27.5kΩ (based on Level control position)
GAIN:	+9.5 dB to +46.7 dB
POWER INPUT:	2.1mm DC Barrel Jack, center (tip) negative
CHASSIS:	Aluminum
POWER SUPPLY:	9V Alkaline Battery, DigiTech PS0913DC Power Supply, Other well-regulated 9V center (tip) negative supply +18V tolerant
CONSUMPTION:	7mA typical
