23 Awesome Classic & Modern Amps

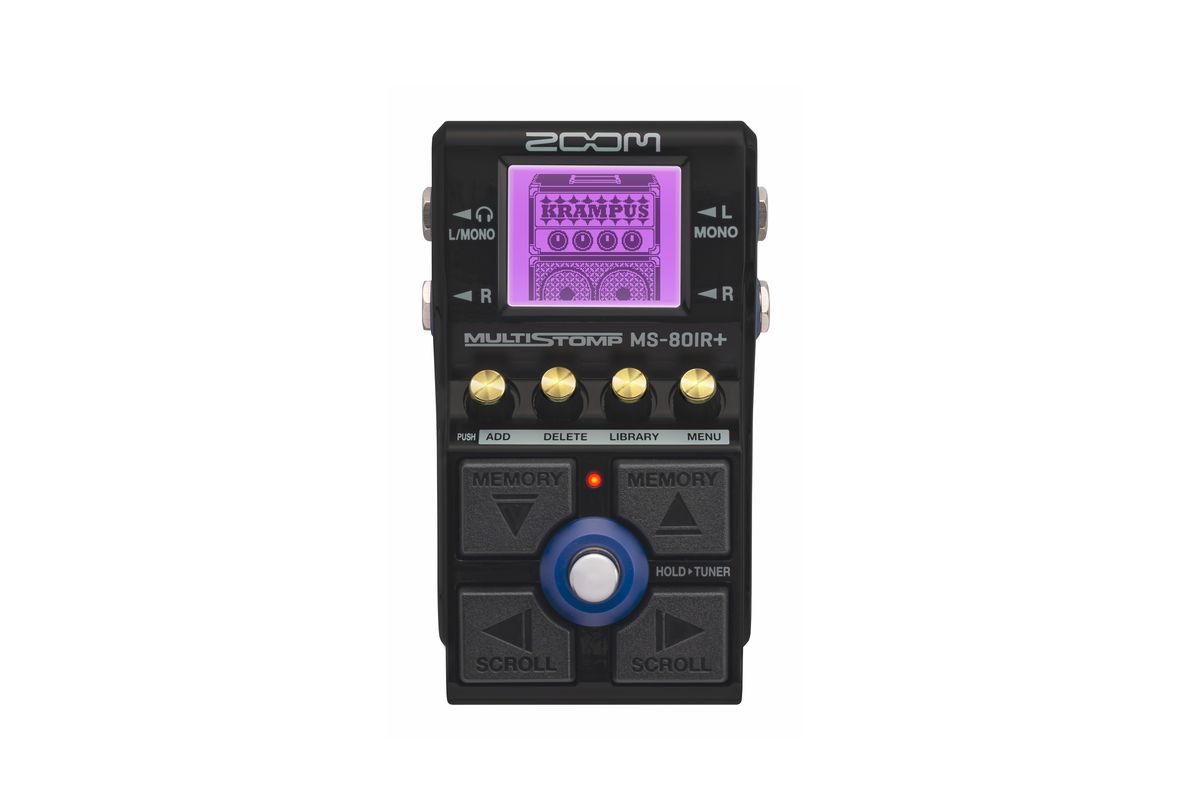

The MS-80IR+ gives guitarists an incredible assortment of amps created using the latest in IR and modeling technology. It comes fully stacked with 23 of the world’s most revered amps and cabs.

23 guitar Amp/Cabinet models developed with Multi-Layer IR technology
5 Studio Sounds effects to add natural reverb to your tone
12 additional effects, including noise gates, EQ’s, and delays
Create and save 80 unique memory patches
4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
Stereo input (both active and passive instruments supported)
Stereo output for connection to amps, speaker or headphones
Output splitting lets you send signals with and without IR’s simultaneously
Chromatic tuner supports all standard guitar tunings, including open & drop tunings
2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
IR load function for speaker cabinet simulation
Runs on 2 AA batteries or AC Adapter
Handy Guitar Lab for MS-80IR+ App (iOS)

Maximum number of simultaneous eﬀects	1 amplifier, 1 studio ambience and 1 other effect
User patch memories	80
Sampling frequency	44.1 kHz
A/D conversion	24-bit 128× oversampling
D/A conversion	24-bit 128× oversampling
Signal processing	32-bit
Frequency response	20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display	160×128 dot-matrix LCD
Inputs	L / R	Standard mono phone jacks
Rated input level: −20 dBu
Input impedance (line): 470 kΩ
Outputs	L / MONO / Headphone	Standard stereo phone jacks (combined line/headphone)
Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Maximum output level: 20 mW + 20 mW (when 32Ω load)
R	Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N	122 dB
Noise ﬂoor (residual noise)	L / R	–100 dBu
Power	AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
• USB bus power is supported.
Estimated operation times using batteries	Alkaline batteries: about 3.5 hours (about 3 hours using stereo input)
NiMH batteries (1900 mAh): about 4 hours (about 3.5 hours using stereo input)
Lithium batteries: about 7.5 hours (about 6.5 hours using stereo input)
• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB	Port: USB 2.0 Type-C
Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Audio interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in 2 out
• Use a USB cable that supports data transfer.
Dimensions	133 mm (D) × 79 mm (W) × 61 mm (H)
Weight	369 g (excluding batteries)
416 g (including batteries)
