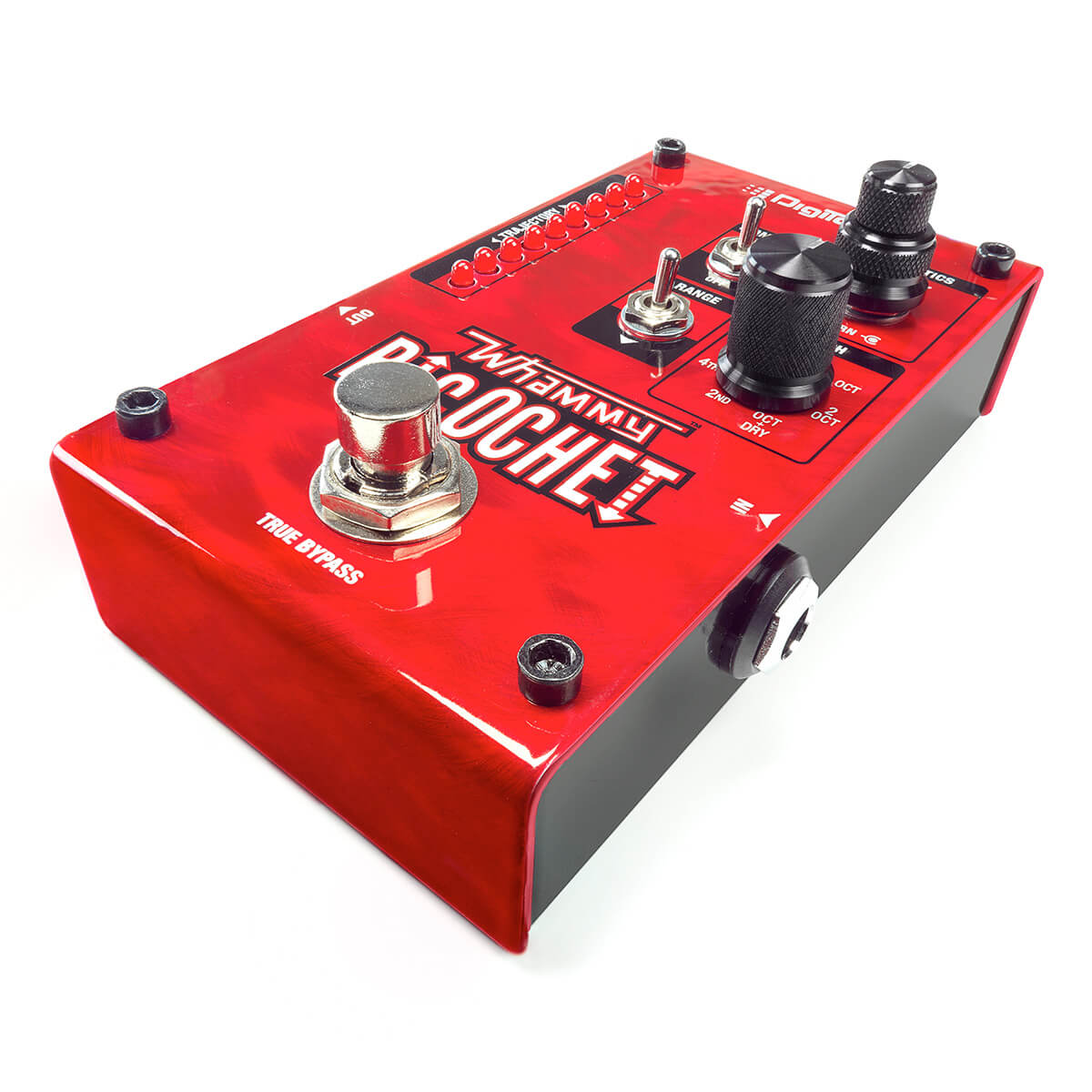

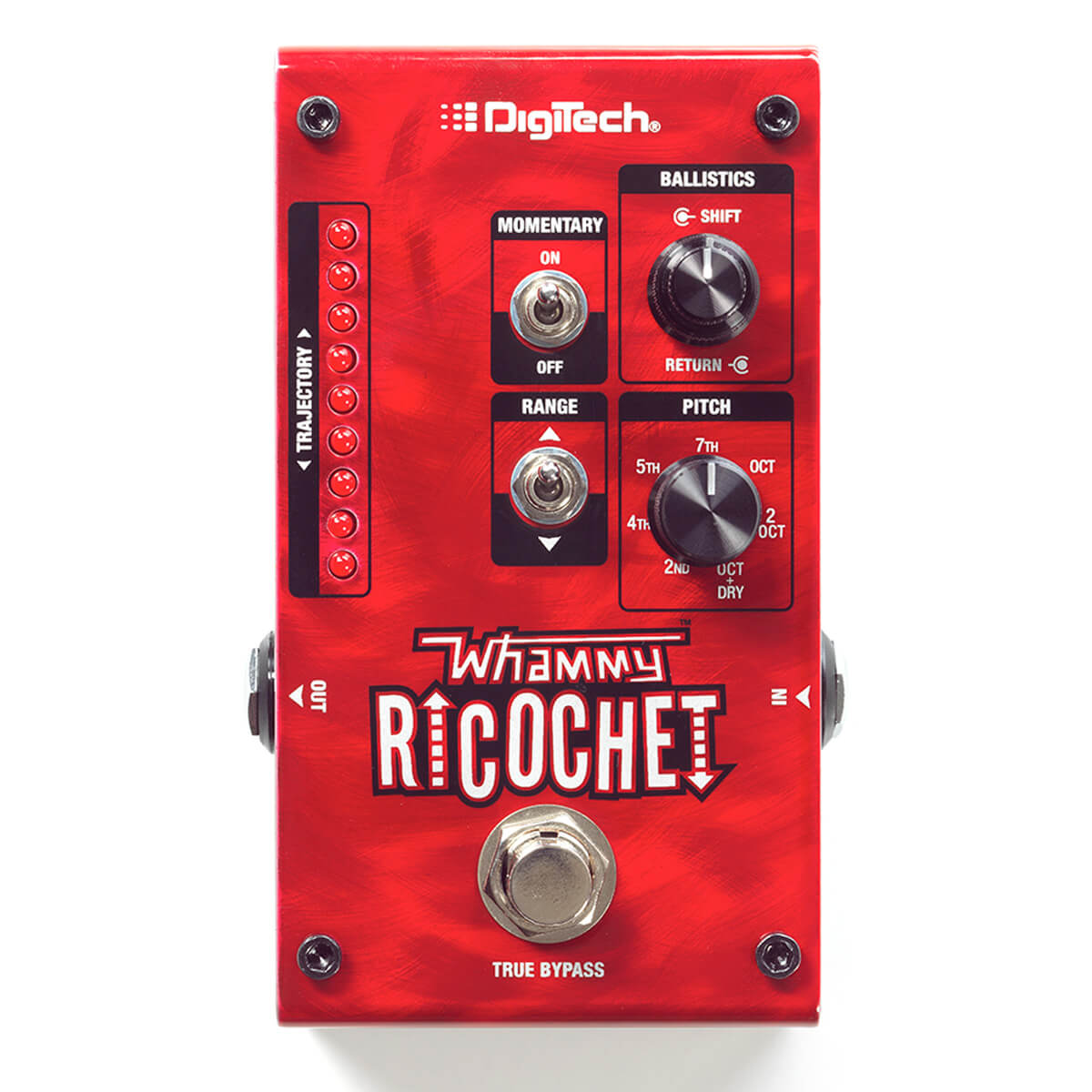

DIGITECH - Whammy Ricochet

Ref: DG RICOCHET

DIGITECH - Whammy Ricochet

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot..." Leia mais

SOB CONSULTA

149,00

Menos
Mais
ADICIONAR

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections – 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch.


The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times.


All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

General Specifications

CONTROLS

Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off

SAMPLE RATE

44.1 kHz in classic mode, 22 kHz in chords mode

FREQUENCY RESPONSE

20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)

SIGNAL TO NOISE RATIO

> -106dB (A weighted); ref = max level, 22 kHz bandwidth

A/D/A CONVERTER

24-bit

THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

POWER CONSUMPTION

2.1 Watts (235 mA typical @ 9 VDC)

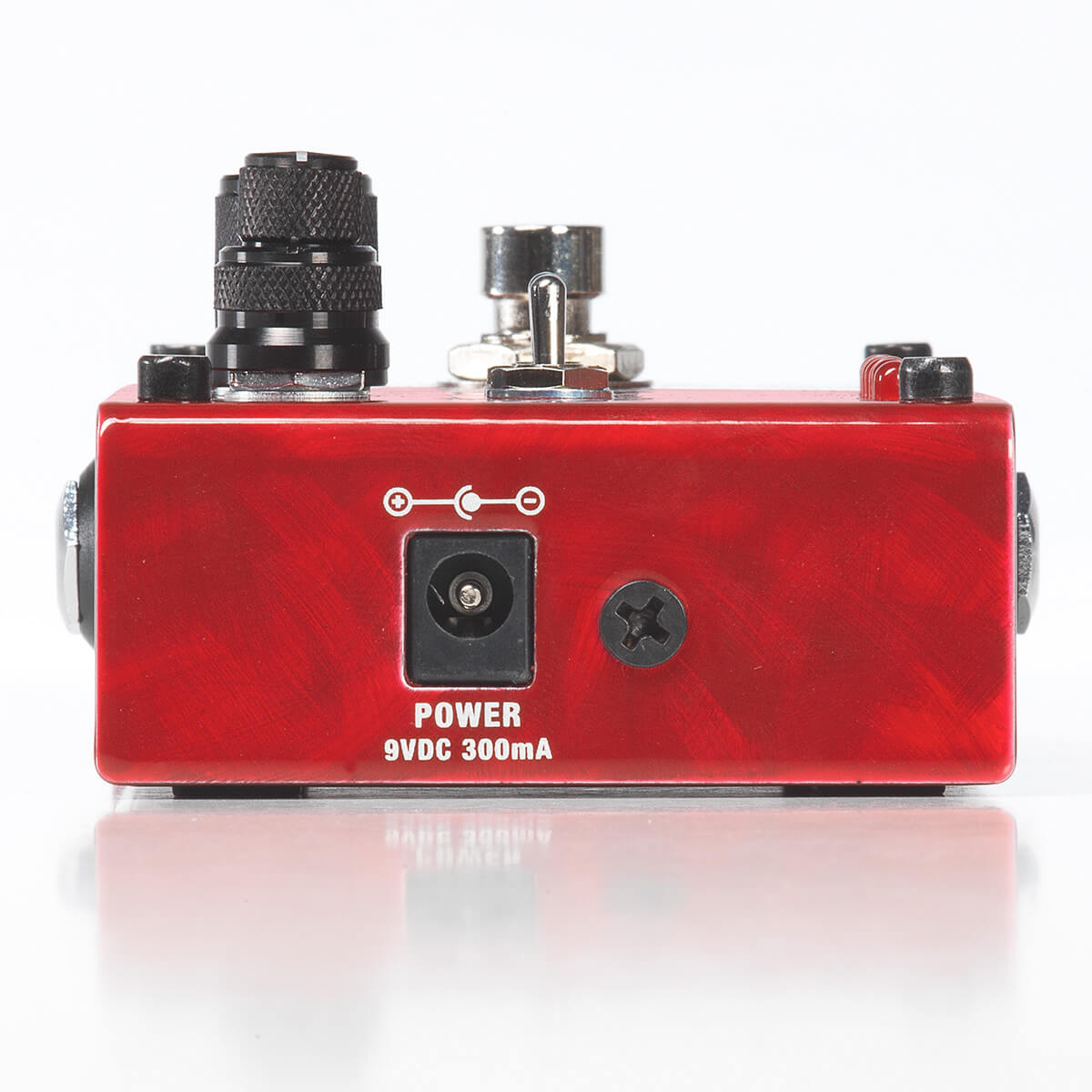

POWER REQUIREMENTS

9V DC External Adapter (sold separately)

POWER SUPPLY

PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)

POWER ADAPTER OUTPUT 9V DC 1.3A

9V DC 1.3A
Dimensions

LENGTH

4.75" (122mm)

WIDTH

2.875" (76mm)

HEIGHT

1.75" (47mm)

WEIGHT

0.8 lbs.
Audio Output

OUTPUT

1/4" Unbalanced (Tip-Sleeve)

MAX OUTPUT LEVEL

+10 dBu

OUTPUT IMPEDANCE

1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input

INPUT

1/4" Unbalanced (Tip-Sleeve)

MAX INPUT LEVEL

+5 dBu

INPUT IMPEDANCE

1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
