Perfectly equipped throughout, the MAUI® 5 GO 100 is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power to 12 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.

Its superlight weight of just 12.4 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.

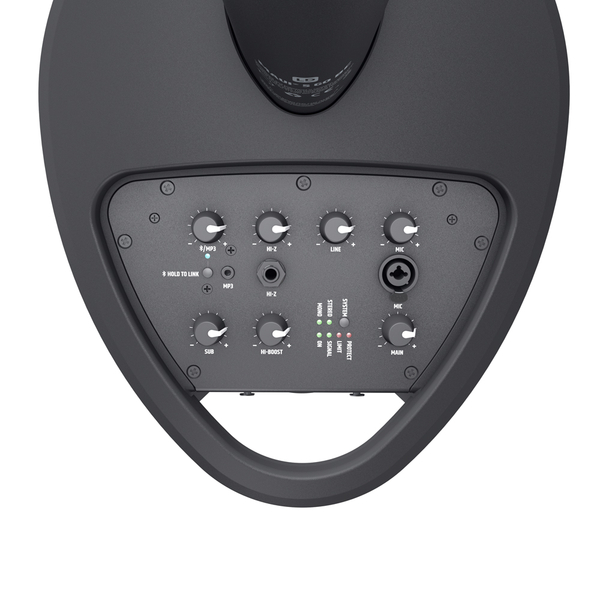

For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. In addition, LD Systems' Quick-Swap-Technology® enables the immediate, problem-free replacement of the battery element and thus offers the possibility of extending the operating time of the MAUI® 5 GO 100 as desired.

General

Type

Active

Peak output power

800 W

RMS output power

200 W

Amp class

Class D

Max. SPL peak

120 dB

Max. SPL average

114 dB

Frequency response

50 Hz - 20000 Hz

Speaker system

2-way coaxial system

Beam angle

Hor.: 120° / Vert.:20°

Protection features

Overheating, Overvoltage, Short circuit, Multiband Limiter

Colour

Black

Bluetooth®

Bluetooth® version

Bluetooth® 4.2

Bluetooth® range

≤10 m (Class 2)

Supported audio codecs

SBC

Inputs

Number of microphone inputs

1

Mic-in connector type

XLR combo socket

Number of instrument inputs

1

Inst-in connector type

6.3 mm Jack TS female

Number of line inputs

2

Line-In connector type

XLR combo socket

Number of music inputs

1

Music inputs connector types

3.5 mm Jack TRS female

Signal processing

DSP model

LECC

Mixer

Yes

Mixer channels

4

Audio processing

3 band EQ (High, Mid, Low)

AD/DA converter bit depth

24 Bit

AD/DA converter sampling rate

48 kHz

Bass driver

Size

8 "

Manufacturer

Custom Made

Magnet

Ferrite

Voice coil

2 "

Mid-high range

Size

3 "

Quantity

4

Manufacturer

Custom Made

Voice coil

1 "

Magnet

Neodymium

Mains operation

Operation voltage

100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz

Power supply type

Switched-mode power supply (SMPS)

Rated power

300 W

Mains connector

IEC C14 plug male

Mains fuse

T3.15AL/250 V

Fuse replacement

Possible from the outside without opening

Accumulator data

Cell technology

Lithium-ion (Li-Ion)

Exchangeable

Yes

Operating voltage

28.8 V

Battery capacity

3200 mAh

Battery life

4 h (DJ Mode) - 12 h (Lounge)

Charging time (100 %)

2 h

Charging time (80 %)

1.5 h

Housing

Design

Bass reflex

Cabinet material

ABS

Front grille material

Aluminium

Cooling

Cooling system

Convection cooling

Satellites/columns

Design

Closed

Chassis material

ABS

Width

82 mm

Height

535 mm

Depth

105 mm

Weight

3.5 kg

Subwoofer

Design

Bass reflex

Number of handles

1

Width

305 mm

Depth

395 mm

Height

405 mm

Weight

8.9 kg

Environmental

Ambient temperature

0 °C - 40 °C

Maximum air humidity (non-condensing)

80 %

Dimensions & weight

Width

305 mm

Height

1985 mm

Depth

395 mm

Weight

12.4 kg

Other properties

Included accessories

Mains cable
