Unifica a tua visão criativa.

O FANTOM-0 dá vida ao teu mundo criativo, combinando o poder sonoro e o workflow fluído dos modelos topo de gama da série FANTOM em instrumentos simplificados que acompanham todas as aventuras da tua inspiração.

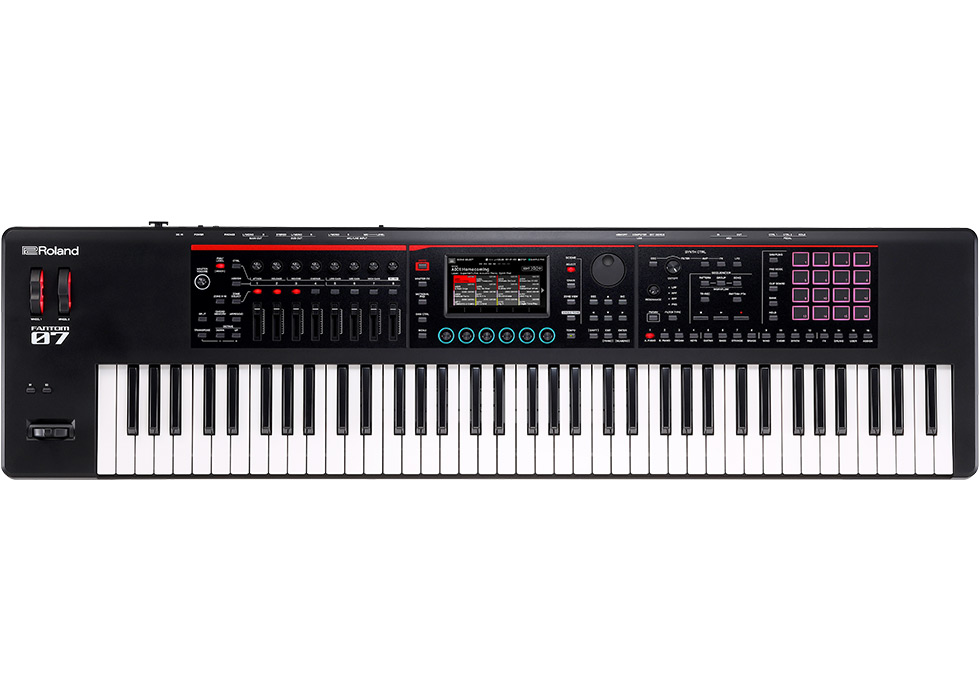

Equipado com um novo teclado de 76-teclas, o FANTOM-07 possui tudo o que necessitas para criar e atuar ao mais alto nível. Toca e produz com centenas dos melhores sons da Roland e liberta a tua visão musical com as mesmas características dos modelos principais: ecrã tátil a cores, controlos práticos e integração profunda com computadores.

KEYBOARD
Keyboard: 76 Keys (with velocity)
SOUND GENERATOR
TONE: ZEN-Core
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
SuperNATURAL Electric Piano (EXSN02 Preload)
VTW Organ (Only ZONE2)
Various MODEL sound generators (Require adding EXM Series)

* ZEN-Core Tones and Model Tones can import and export.
* Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
Expansion: EXZ Series
EXSN Series
EXM Series

* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM''s internal memory.
Parts: 16 zones (Internal + External)
Scenes: 128 scenes x 4 bank

* The Scenes can import and export.
Tones: 3,500 tones or greater
90 Drum kits or greater
Tone Remain: 8 zones
* When Scene Remain Switch enabled.
Tone Remain does not apply to VTW Organ sounds.
Favorite: Rating System: 4 steps (0-3)
Tone Search/Scene Search: Rating, Character
Effects: Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 1 system, 90 types

Chorus: 9 types
Reverb: 7 types
Master Compressor
Input Reverb: 7 types
Input EQ: 1 system
Vocoder: Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20
Scene Chain: Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
PATTERN SEQUENCER
MIDI Tracks: 16
Group: 16
Pattern: 8 (per each track)
Pattern Length: 64 measures
Recording Method: Realtime recording, Step recording, TR-REC
Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
Song: 1 (per Scene)
File format: Original, SMF export/import supported

* PAD Sampler trigger data can be recorded.
SMF PLAYER
Format: SMF (Format 0/1)
MIDI tracks: 16
Tempo range: 5-300 BPM
Transpose function: -5-+6 semitone
Track Mute: Yes
Track Solo: Yes
A/B loop function: Yes

* The pattern sequencer and SMF player can be used in each scene.
They cannot be used at the same time.
SAMPLER - KEYBOARD MULTISAMPLE
Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported.
Number of Samples: 2,048
Number of Multisamples: 128
Sampling Time: The maximum is 2 minutes 44 second (1 Sample).

* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.
SAMPLER - PAD SAMPLER
Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
Maximum Polyphony: 8
Number of Samples: 16 pads x 4 banks
Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).

* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.
SAMPLER - INTERNAL STORAGE SPACE FOR FILES
Size: 2 GB
OTHERS
Rhythm Pattern: Yes
Arpeggiator: Yes
Chord Memory: Yes
Motional Pad: Yes
PAD Mode: Sample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
AIRA LINK: * When connect to MX-1
Controllers: Pitch Bend/Modulation lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 2 *1
4 x 4 Pad

*1: 1,024 step editing support
It can be use with Cutoff, Resonance.
Display: Graphic Type, 5.5 (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)
Connectors: Headphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
Mic Input jacks: 1/4 inch TRS type
Line Input jacks: (L/MONO,R) (1/4 inch phone type)
FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (AUDIO/MIDI)
External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
Audio Interface: Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 2 Stereo Channel
External Memory: USB Flash drive (sold separately)
Power Supply: AC Adaptor
Power Consumption: 1,300 mAh
Accessories: Owner''s Manual
AC adaptor
Options (sold separately): Keyboard Stand:
KS-10Z, KS-12, KS-20X
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive
SIZE AND WEIGHT
Width: 1,218 mm
48 inches
Depth: 323 mm
12-3/4 inches
Height: 95 mm
3-3/4 inches
Weight: 7.0 kg
15 lbs 7 oz
