Providing extensive sound shaping options for acoustic guitars and basses, the Acoustic Pocket Amp is a versatile preamp that‘s perfect for gigging, recording and practising. It accomodates both piezo and magnetic pickups, and the 3-band EQ with semi-parametric mid control is specifically tuned for acoustic instruments. The Pocket Preamp features an input limiter to prevent transient distortion while a 5-position rotary notch filter eliminates resonant frequency feedback. A mode switch selects between crisp contemporary or warm vintage sound characteristics, and a blend control allows you to mix the direct and processed signals.

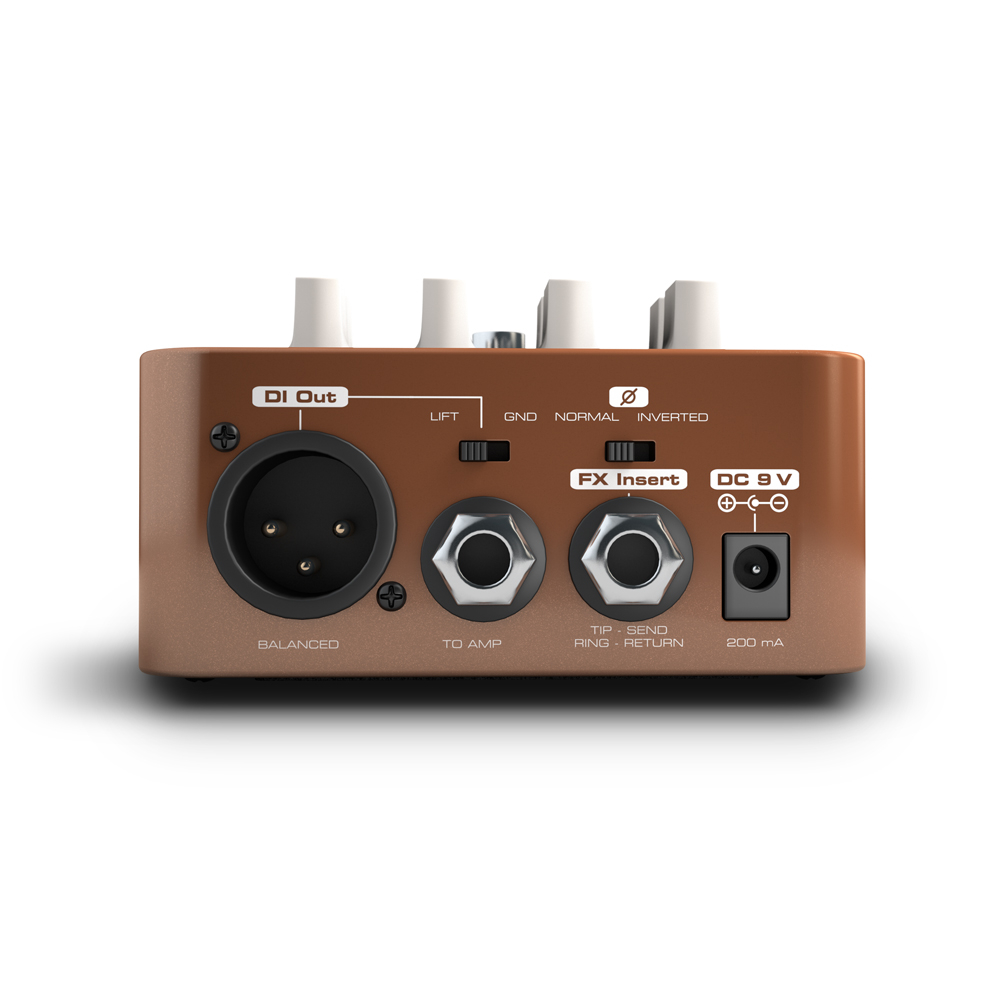

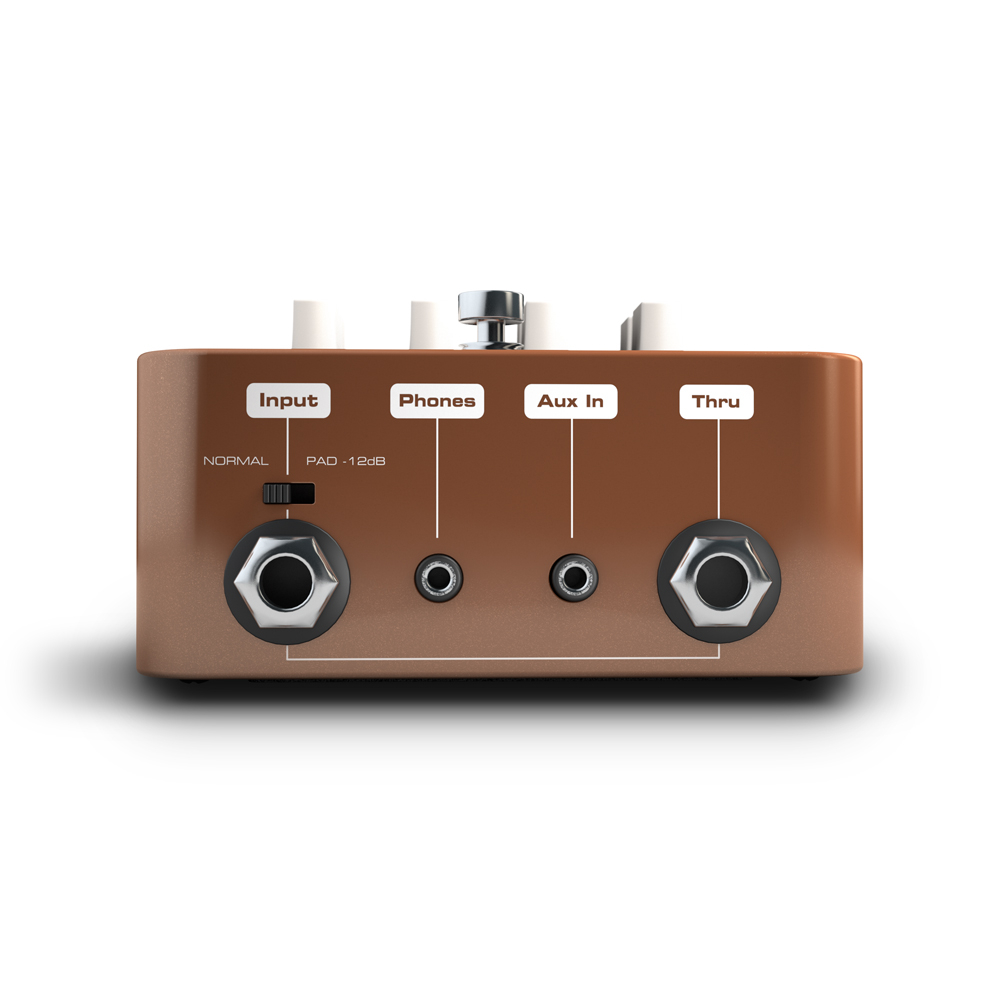

The Acoustic Pocket Amp provides an insert for external effects, 3.5 mm stereo line input, headphones output and a footswitch-assignable thru jack to connect a tuner. Enabling DI applications, the balanced XLR output is pre or post signal processing switchable. The Acoustic Pocket Amp requires a 9 volt battery or power adapter and comes in a rugged diecast enclosure with heavy duty long-life footswitch, convenient LED status indicators and ground lift.

• Versatile acoustic preamp for instruments with piezo and magnetic pickups
• Compatible with instrument amplifiers, sound reinforcement systems and recording mixers
• Flat, Modern and Vintage sound mode switch
• Input limiter, polarity switch and notch filter
• 3-Band EQ with semi-parametric mid control
• Blend control for wet and dry signal mixing
• 3-pin XLR for balanced DI, pre or post signal processing switchable
• Footswitch-assignable tuner output
• Insert, stereo line input and ground lift

Product type

Guitar Effects

Type

Preamp

Inputs

2

Input connectors

6.3 mm jack

Input impedance

1 M Ohm(s)

Outputs

4

Output connectors

6.3 mm jack

Output impedance

100 Ohm (XLR) / (TRS) - 500 Ohm(s)

Controls

Bass, Blend, Di, Footswitch, Gain, highs, Mid, mid frequency, Mode, Notch, Style, volume

Indicators

on/off, peak, Signal

Power supply

9 V block, 9 V DC power supply

Cabinet material

Die-cast aluminium

Width

100 mm

Depth

100 mm

Height

55 mm

Weight

0,41 kg

Features

FX loop
