SPEC

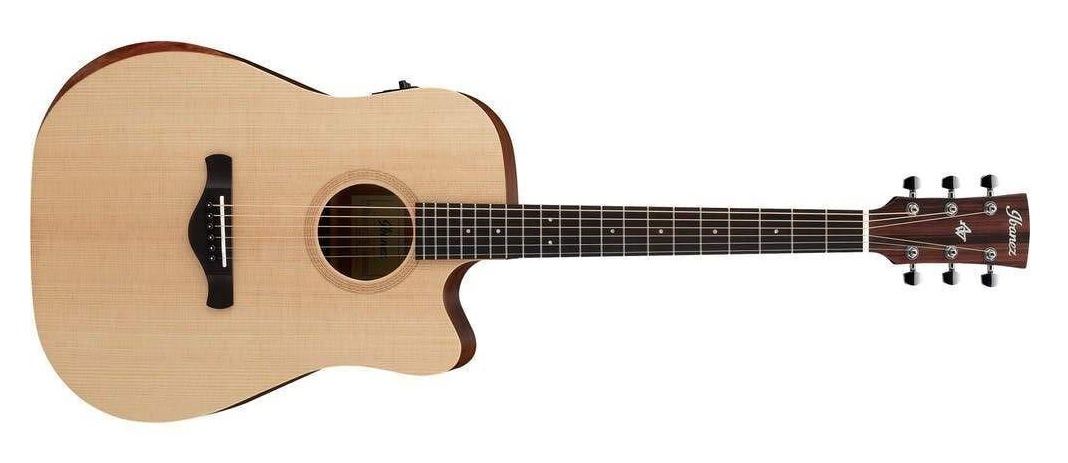

• body shape: Cutaway Dreadnought body
• top: Solid Sitka Spruce top
• back & sides: Okoume back & Okoume sides
• neck: AW Nyatoh neck
• fretboard: Ovangkol fretboard
• bridge: Ovangkol bridge
• inlay: White dot
• soundhole rosette: Laser engraved rosette
• tuning machine: Chrome Die-cast Tuner
• nut material: Bone
• number of frets: 20
• saddle material: Compensated Bone
• bridge pins: Ibanez Advantage™
• strings: D'Addario® EXP16
• pickup: Ibanez T-bar Undersaddle
• preamp: Ibanez AEQ-TP2 preamp w/Onboard tuner
• output jack: Balanced XLR & 1/4" outputs

NECK DIMENSIONS

• Scale : 651mm
• a : Width: 43mm at NUT
• b : Width: 56mm at 14F
• c : Thickness: 21mm at 1F
• d : Thickness: 22mm at 7F
• Radius : 400mmR

BODY DIMENSIONS

• a : Length: 20 "
• b : Width: 15 3/4"
• c : Max Depth: 5 "

PREAMP
