SPECS

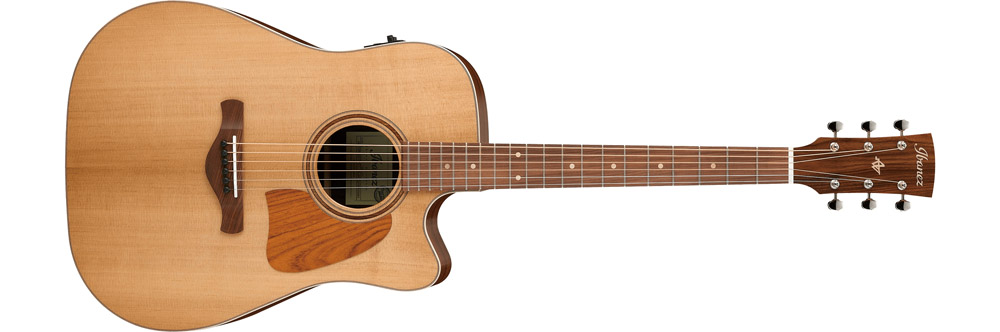

• body shape: Cutaway Dreadnought body
• bracing: Thermo Aged™ Spruce X bracing
• top: Thermo Aged™ Solid Sitka Spruce top
• back & sides: Pau Ferro back & Pau Ferro sides
• neck: AWNyatoh neck
• fretboard: Thermo Aged™ Pau Ferro fretboard
• bridge: Thermo Aged™ Pau Ferro
• body binding: Wooden multi binding
• inlay: Maple Dot inlay
• soundhole rosette: Wooden multi
• tuning machine: Chrome Open Gear tuners w/Butterbean knobs (18:1 gear ratio)
• nut material: Bone
• number of frets: 20
• saddle material: Compensated Bone
• bridge pins: Ebony
• strings: D'Addario® XTAPB1253
• string gauge: .012/.016/.024/.032/.042/.053
• string space: 11mm
• factory tuning: 1E,2B,3G,4D,5A,6E
• pickup: Fishman® Sonicore
• preamp: Ibanez AEQ-SP2 preamp w/Onboard tuner
• output jack: Balanced XLR & 1/4" outputs

NECK DIMENSIONS

• Scale : 651mm
• a : Width: 43mm at NUT
• b : Width: 55mm at 14F
• c : Thickness: 21mm at 1F
• d : Thickness: 22mm at 7F
• Radius : 400mmR

BODY DIMENSIONS

• a : Length: 20 "
• b : Width: 15 3/4"
• c : Max Depth: 5 "

PREAMP

De momento não existe informação disponível
