GUILD - X-175 Manhattan Special

Ref: GD X175MANSPEC

GUILD - X-175 Manhattan Special

SOB CONSULTA

€ 1.288,00

ADICIONAR

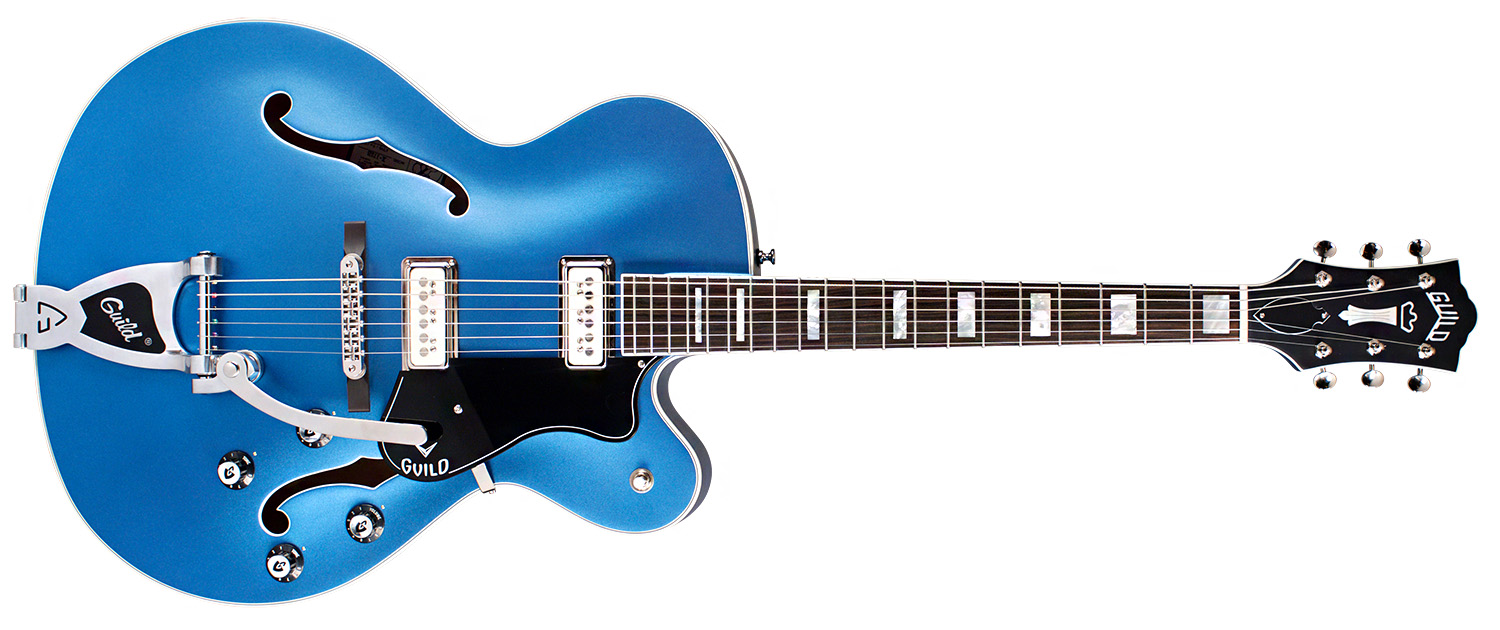

The precedent for hollowbody aesthetic and tone, the X-175 Manhattan Special looks as good as it sounds. With its gracefully sculpted and richly resonant hollowbody, arched spruce top, and rock-solid three-piece neck it exemplifies the quality building of the Guild Manhattan models of the 1950’s and ‘60s. The secret to this model’s iconic tone lies in the authentic DeArmond Dynasonic neck and bridge pickups, providing crystal clears highs and a full, round low-end - the makings of the iconic tones of rockabilly and blues from the 1950’s on forward. Complimenting the tonal pallet of the Dynasonic pickups, the X-175 Manhattan Special features a Guild Vibrato Tailpiece for expressive playing. Other premium features include fully bound body, neck, F-holes, and headstock, mother-of-pearl block fretboard inlays, and a hard shell case. Available in a special addition satin Malibu Blue finish.

Body

Body Type	Hollowbody
Body Shape	Guild X-175
Body Top	Arched Spruce
Body Wood (Solid Bodies)	N / A
Top Bracing Pattern	Parallel Tone Bars
Soundhole / F Holes Binding	White ABS
Top Purfling Inlay	2-Ply Black and White
Top Binding	White ABS
Body Sides	Maple
Side Purfling Inlay	N / A
Body Back	Arched Maple
Back Purfling Inlay	2-Ply Black and White
Purfling	2-Ply Black and White
Body Binding	White ABS

Neck

Neck Material	Mahogany with a Maple Center Strip
Scale Length	24 3/4" (629mm)
Neck Shape	Vintage Soft "U"
Nut Width	1 11/16" (43mm)
Neck Thickness 1st Fret	20mm
Neck Thickness 9th Fret	24mm
Truss Rod	Dual Action
Truss Rod Wrench	7mm Socket Wrench
Fingerboard Material	Ebony
Fingerboard Radius	9 1/2" (240mm)
Fingerboard Inlays	Blocks - Mother-Of-Pearl
Frets Total	20
Fret Type	Narrow Jumbo
Fingerboard Binding	1.5 mm White ABS

Finish

Color	Malibu Blue (MBL)
Finish - Top	Satin Polyurethane
Finish - Back and Sides	Satin Polyurethane
Finish - Neck	Satin Polyurethane

Hardware

Bridge String Spacing	2" (52mm)
Hardware Finish / Plating	Nickel Plated
Bridge	Guild Tune-O-Matic with Pinned Ebony Bridge Bass
Tailpiece	Guild Vibrato Tailpiece Hollow Body - Aluminum
Nut Material	Bone
Tuning Machines	Grover Sta-Tote Open-Gear 18:1 - Nickel
Strap Buttons	Vintage Pawn - Nickel
Pickguard	Acrylic in Black with White Guild Logo

Electronics

Bridge Pickup	DeArmond Dynasonic Nickel and White - Bridge
Neck Pickup	DeArmond Dynasonic Nickel and White - Neck
Pickup Switch	3-Way Toggle: 1. Bridge Pickup - 2. Bridge and Neck Pickups - 3. Neck Pickup
Controls	Neck Volume, Bridge Volume, Middle Volume, Master Tone, 3-way Toggle Pickup Switch

Other

Strings	D'Addario EXL115 Nickel Wound, Medium (.011 - .049)
Included Case	Guild Deluxe Electric Guitar Wood Case
Case Candy	Guild Cloth Bag filled with Warranty Book, Promotion Card with Stickers, Truss Rod Wrench, and 2 Guild Picks
Upper Bout Width	12 1/2" (318mm)
Lower Bout Width	17" (432mm)
Body Depth Upper Bout	3" (76mm)
Body Depth Lower Bout	3" (76mm)
Body Length	21" (533mm)
Overall Length	42" (1067mm)
