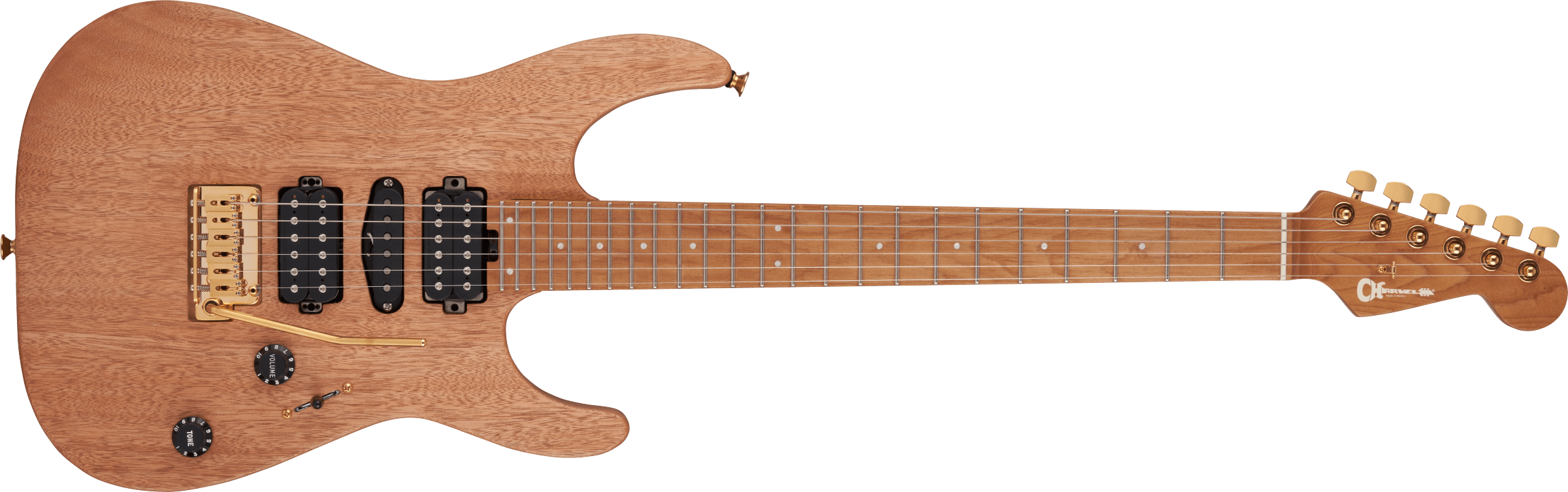

The sleekly sculpted mahogany Dinky® body features a scalloped lower back bout and shredder's cut heel that make access to the upper registers seamless. The bolt-on caramelized maple "speed" neck has graphite reinforcement for sturdy stability against environmental warping and a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability. Luminlay® side dots guide your way along the fretboard on even the darkest of stages, and the heel-mount truss rod adjustment wheel makes for painless neck relief tweaks. Designed for fast playing, the 12"-16" compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, pearloid dot inlays and Graph Tech® TUSQ® XL nut.

Smooth sustain paired with warm, buttery timbre radiates from a custom Seymour Duncan® Full Shred™ TB-10 bridge pickup, Seymour Duncan Custom Flat Strat® SSL-6 single-coil middle pickup and custom Seymour Duncan Alnico II Pro™ APH-1N neck pickup. The bridge pickup emits a bright tone with a tight low end and scooped mids. The middle pickup is the perfect blend of heightened output and springy Stratocaster attitude, while the humbucking neck pickup shines with a distinct warmth that is silky and boasts incredible natural sustain.

Taking our modern DK24 platform up a notch, this 2PT model's premium modern features include a five-way blade pickup switch, Stratocaster®-style skirt knobs for the volume (with 500K EVH® Bourns® low friction potentiometer) and no-load tone controls, Gotoh® Custom 510 tremolo bridge, Charvel-branded locking tuners and more.

Sporting sophisticated style, the Pro-Mod DK24 HSH 2PT CM Mahogany is available in an all-new Natural finish with gold hardware.

General

Model Number2969434557

SeriesPro-Mod

ColorNatural

Number of Strings6

OrientationRight-Hand

Electronics

Bridge PickupSeymour Duncan® Full Shred™ TB-10

Middle PickupSeymour Duncan® Custom Flat Strat® SSL-6 Single-Coil

Neck PickupCustom Seymour Duncan® Alnico II Pro™ APH-1N

Pickup ColorFlat Black

ControlsVolume (500K EVH® Bourns® Low Friction Pot), No-Load Tone

Pickup Switching5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Both Inner Coils, Position 4. Neck Outer Coil and Middle Pickup, Position 5. Full Neck Pickup

Pickup ConfigurationHSH

Body

Body FinishSatin

Body ShapeDinky®

Body MaterialMahogany

Hardware

BridgeGotoh® Custom 510 Tremolo

Hardware FinishGold

Tremolo ArmGotoh®

Tuning MachinesCharvel®-Branded Die-Cast Locking

PickguardNone

Control KnobsStratocaster®-Style Skirt

Switch TipBlack

Saddle Height WrenchYes

Neck

Neck MaterialCaramelized Maple

Neck ConstructionBolt-On with Graphite Reinforcement

Neck FinishHand-Rubbed Satin Urethane

Neck ShapeSpeed Neck with Rolled Fingerboard Edges

Neck BindingNone - Rolled Fingerboard Edges

Scale Length25.5" (64.77 cm)

Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard MaterialCaramelized Maple

Number of Frets24

Fret SizeJumbo

Nut MaterialGraph Tech TUSQ XL

Nut Width1.6875" (42.86 mm)

Position Inlays4mm Pearloid Dot

Side DotsLuminlay®

Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel

String TreesFender® Standard String Guide

HeadstockLicensed Fender® Stratocaster®

Neck PlateNone - 4-Bolt Sculpted Heel

Miscellaneous

StringsNickel Plated Steel (.009-.042 Gauges)

Strap ButtonsStandard
