Whether you're a DJ, a live combo, a solo entertainer or at your next party, you need an all-round PA for everyday live performance that delivers professional sound for a variety of applications. Also on your list of essentials: a wide range of connections and accessory options for fast and flexible on-site setup, and maximum reliability. In a nutshell: your PA has to give its best around the clock.

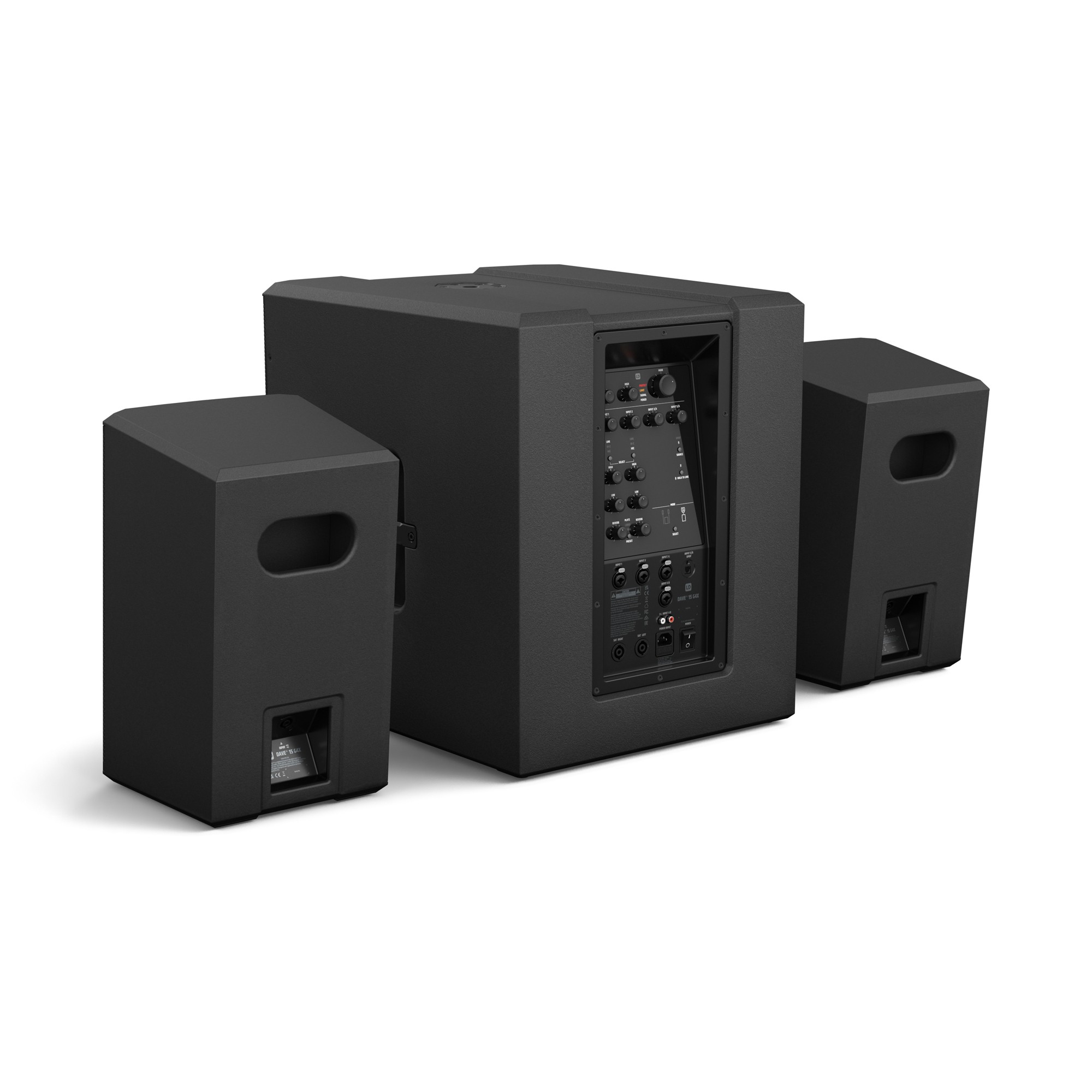

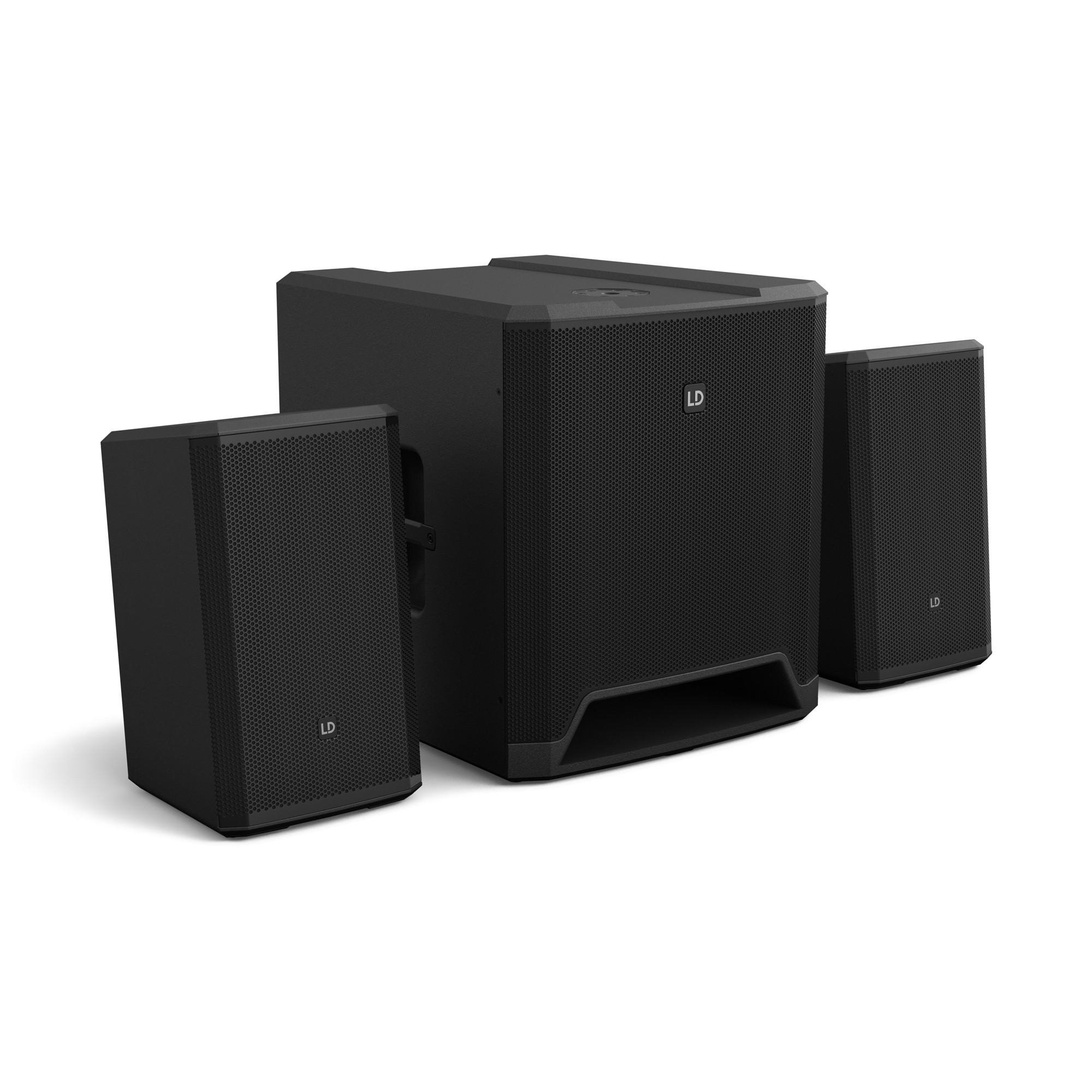

With the DAVE 15 G4X, your search is over. This powered compact PA - which is made up of a 15" subwoofer and two 8" satellites (total power: 2060 W peak) - doesn't just deliver a new, modern design with numerous handling optimisations. It also offers an integrated 6-channel mixer with all the important input options you could ever need. This allows you to create a wide variety of setups and combinations of instruments, vocals and audio sources - both wired and wireless - thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

The first two channels of the mixer are designed as channel strips. Here, you can connect either a microphone, a high-impedance instrument - such as a guitar and/or bass - or line-level sources. A 2-band EQ for bass and treble, as well as an adjustable reverb with three presets (small, large, plate), are available for shaping the sound further. Channels 3 and 4 are designed as stereo line inputs, and are suitable for keyboards, synthesizers, drum machines or small electronic drum kits.

The DAVE 15 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to add a media player, computer or smartphone to your performance setup, allowing you to play and control backing tracks, sound effects or music during your breaks. The inputs (channels 5 and 6) can also be used for a karaoke system, or simply to connect a TV device in the sports bar for an impressive sound experience.

Speaking of impressive sound, the DAVE 15 G4X has been completely redesigned and developed from scratch. This not only benefits instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion, as well as FIR filters and state-of-the-art DSP technology for a transparent, colourless sound that brings the DAVE Series to a whole new level. The subwoofer, for example, is equipped with a larger voice coil and an optimised bass reflex system to reduce air flow noise to a minimum.

The DAVE 15 G4X is predestined for flexible use. The selectable mode presets (for classic stereo use or set up with two closely spaced satellites on a T-stand above the subwoofer) contribute to this - the DAVE G4X is convincing in terms of sound in all configurations. For example, the Cluster Mode preset allows the interference-free coupling of two satellites by means of a special M/S split and reproduction of the stereo signal for more headroom and directivity.

LD Systems has also thought of all common applications when it comes to accessories. These range from custom-fit bags and a castor board to the T-stand mentioned above.

General

Type

Active

Peak output power

2060 W

RMS output power

1030 W

Amp class

Class D

Max. SPL peak

130 dB

Max. SPL average

124 dB

Frequency response (-10 dB, rel. Avg)

33 - 20,000 Hz

Speaker system

3-way system

Crossover frequency

105 Hz

Beam angle

Hor.: 90° / Vert.:30°

Number of inputs

4

Input connector types

Optical digital socket

Number of outputs

2

Output connector types

Standard speaker connector 8-pole female & speakON®

Colour

Black

Bluetooth®

Bluetooth® version

Bluetooth® 5.0

Features

Audio Streaming (A2DP)

Supported audio codecs

SBC

Inputs

Input signal type

Balanced & Unbalanced (parallel)

Number of mic/line inputs

2

Mic/Line-in connector type

XLR combo socket

Number of line inputs

2

Line-In connector type

RCA female

Number of S/PDIF inputs

1

S/PDIF connection type

Optical digital socket

Outputs

Number of speaker outputs

2

Speaker output connection type

Standard speaker connector 4-pole female & speakON®

Signal processing

Mixer

Yes

Mixer channels

6

Audio processing

2 band EQ (High, Low), Digital effects (DFX), Reverb, Presets

Bass driver

Size

15 "

Magnet

Ferrite

Voice coil

3 "

Mid range

Size

8 "

Voice coil

1.5 "

Magnet

Ferrite

Tweeter

Driver size

0.5 "

Quantity

2

Design

Compression driver with CD waveguide

Magnet

Neodymium

Voice coil

1 "

Mains operation

Operation voltage

100 V AC - 240 V AC / 50 - 60 Hz

Rated power

400 W

Mains connector

IEC C14 plug male

Cooling

Cooling system

Convection cooling

Satellites/columns

Design

Bass reflex

Flange

36 mm (0°/5°)

Chassis material

Multiplex 12 mm, Multiplex 15 mm

Housing coating

Polyurea

Front grille material

Aluminium

Width

275 mm

Height

470 mm

Depth

260 mm

Weight

9.7 kg

Subwoofer

Design

Bass reflex

Number of handles

2

Material

Multiplex 15 mm, Multiplex 18 mm

Surface coating

Polyurea

Front grille material

Aluminium

Width

515 mm

Depth

585 mm

Height

575 mm

Weight

34.5 kg

Environmental

Ambient temperature

0 - 40 °C

Maximum air humidity (non-condensing)

80 %

Dimensions & weight

Weight

53.9 kg

Other properties

Included accessories

Mains cable
