A/B ROLL is your Home "ABBEY ROAD" Studio

Your Creative Companion

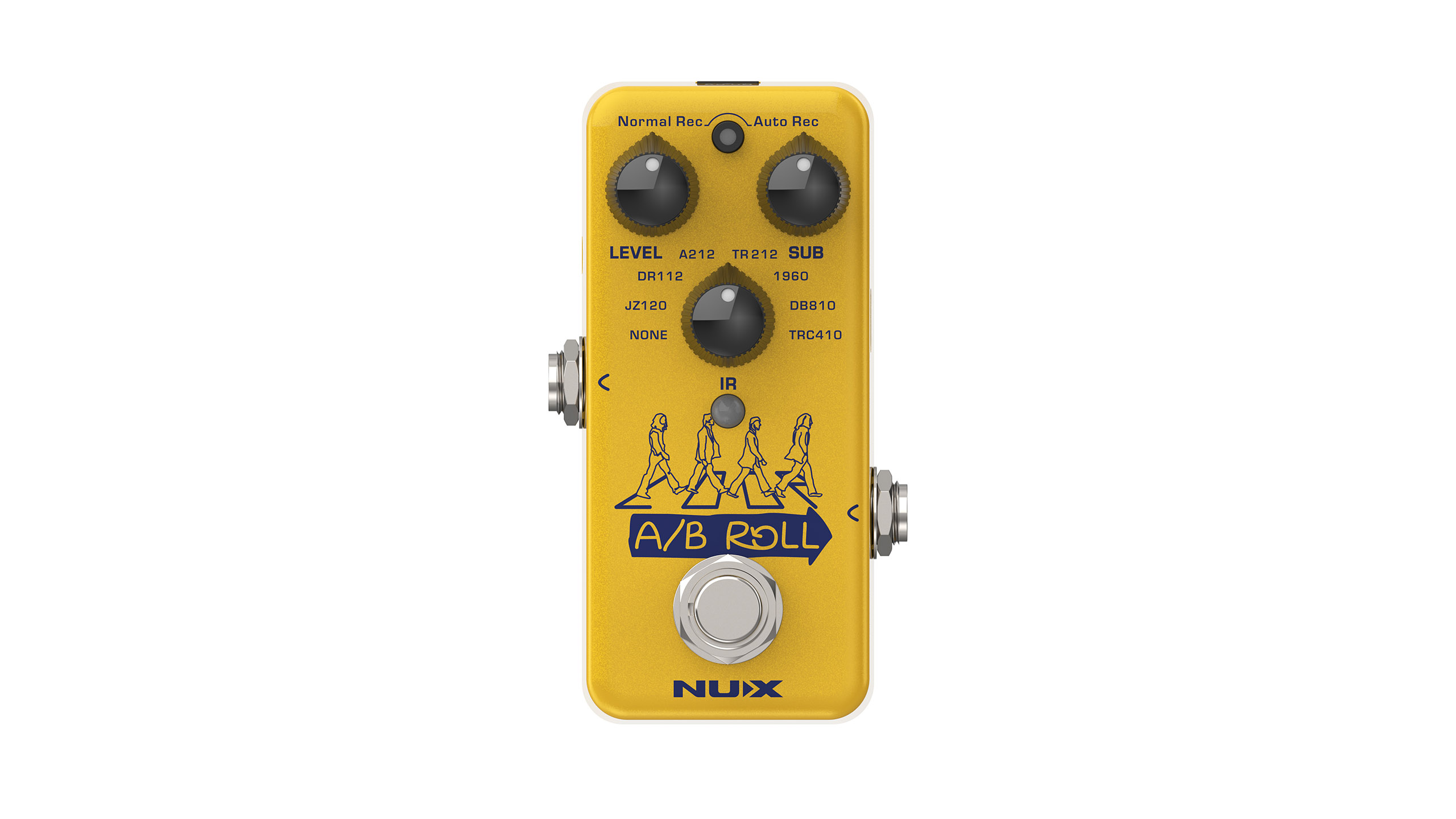

Step onto the next level of recording overdub. The NUX A/B ROLL Octave & Loop pedal is more than just a looper – it’s a musical ode to the legendary studio that inspired its design, where some of the most iconic recordings in music history were made: Abbey Road Studios.

This versatile, compact unit combines polyphonic sub-octave and AUTO recording capabilities with IR cab simulation, bringing the magic of in-the-moment experimental sound recording and overdub, to your creative workflow.

Whether you’re jamming alone in your home studio, capturing a burst of inspiration for your next project, or taking the stage as a performer, this pedal is your trusted companion on your musical journey. Like John, Paul, George, and Ringo before you, you’ll be able to tap into the same creative spark that defined Abbey Road’s legendary approach.

With its compact size and feature-rich functionality, the NUX A/B ROLL Octave & Loop pedal is the perfect companion to let you relax and roll with it !

Unlock new sonic possibilities, and take your music to the next level.

– Polyphonic lower octave timbre

– Preset 7 IR slots

– IR loader and editor

– Auto recording mode

– Support OTG audio stream

– 1/8″ Phones Out

– 24-bit high quality audio recording

– Up to 6 minutes recording, unlimited overdubs

– Input lmpedance: 1MΩ

– Output Impedance: 10kΩ

– Phones Output Impedance: 10Ω

– Dynamic Range: 103dB

– DSP Processing: 48kHz / 32-bit

– AD D/A Sampling Rate: 48kHz / 24-bit

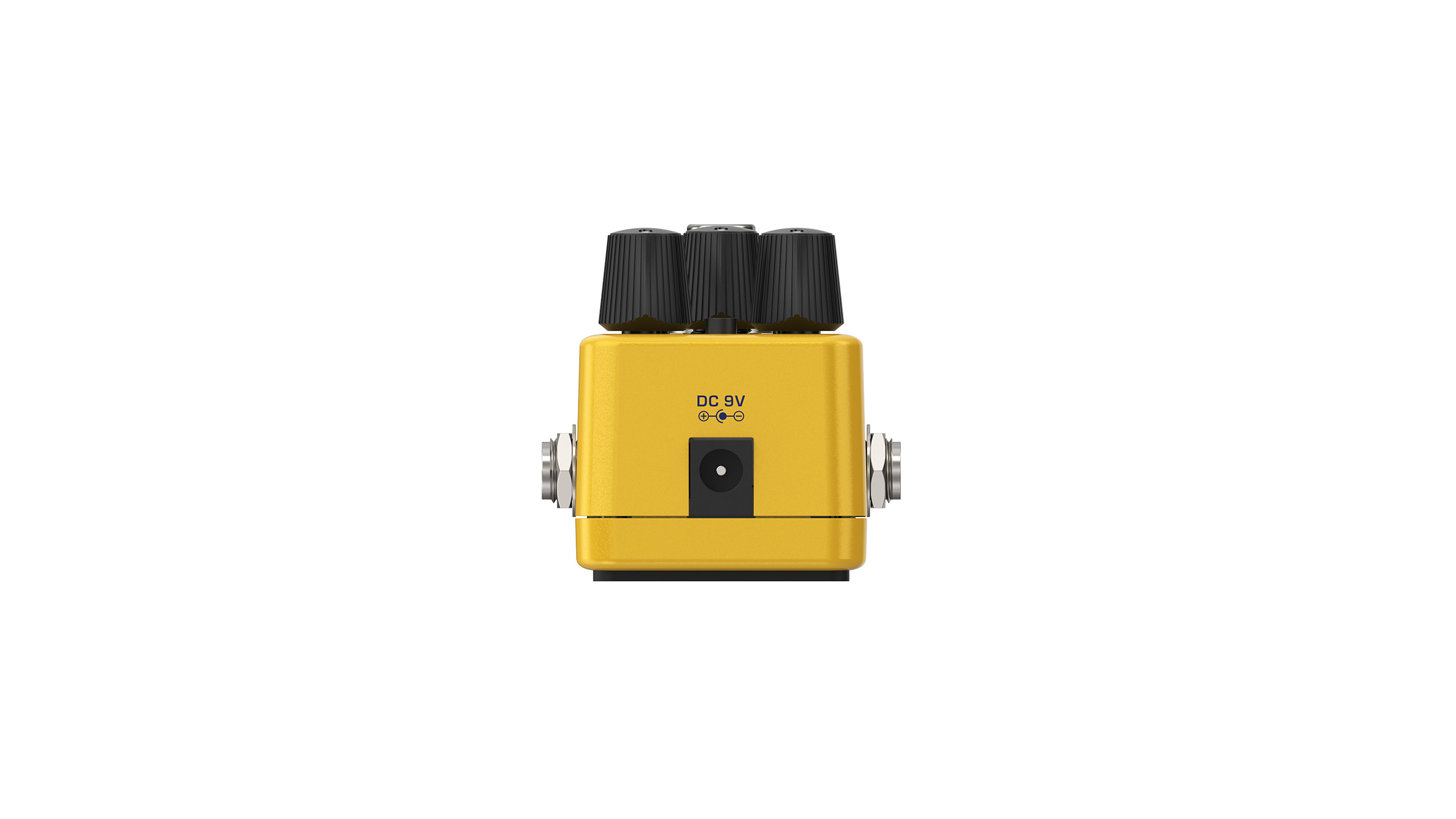

– Power: 9V DC (Negative tip, Optional ACD-006A adapter)

– Current Draw: less than 100mA

– Dimensions: 94(L) x 51(W) x 53(H) mm

– Weight: 175g
