5pc Maple/Jatoba neck

The 5pc Maple/Jatoba Neck with excellent strength provides an enriched resonance.

Medium frets

Medium sized frets enhance the accuracy of your notes.

Okoume body

The Okoume body provides a bright and solid sound.

α1 pickups

α1 pickups deliver ultimate tonal clarity and openness with abundant mids and lows, popular characteristics among modern bass tones.

Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot)

The Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

The EQ bypass control offers precision tonal adjustments, including a switch to choose passive-only operation. When the EQ bypass is activated, the treble tone control knob becomes the global tone control for the passive circuit.

Ergonomic body design

The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.

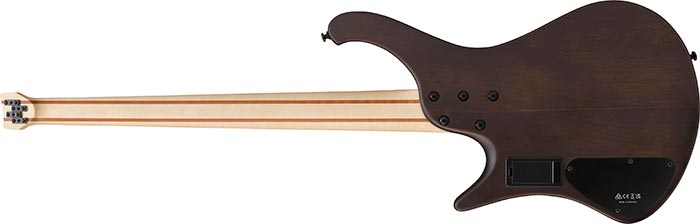

Slanted body back

The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Ibanez custom headpieces

Rugged yet light-weight Ibanez custom headpieces enable strings to be easily set and released by a hex wrench from the back side.

Comfortably rounded body edge, Chambered body

Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.

Scooped cut on the body back

There is extra carving on the back of the body behind the lower horn for easier upper fret access.

MR5HS mono rail bridge w/string spacing adjustable saddles

The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

neck type: EHB4 / 5pc Maple/Jatoba neck

top/back/body: Okoume body

fretboard: Jatoba fretboard / White dot inlay

fret: Medium frets

number of frets: 24

bridge: MR5HS bridge

string space: 19mm

neck pickup: α1 neck pickup / Passive

bridge pickup: α1 bridge pickup / Passive

equalizer: Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)

factory tuning: 1G,2D,3A,4E

strings: D'Addario® EXL165

string gauge: .045/.065/.085/.105

hardware color: Black
