Elevate Expression Everywhere

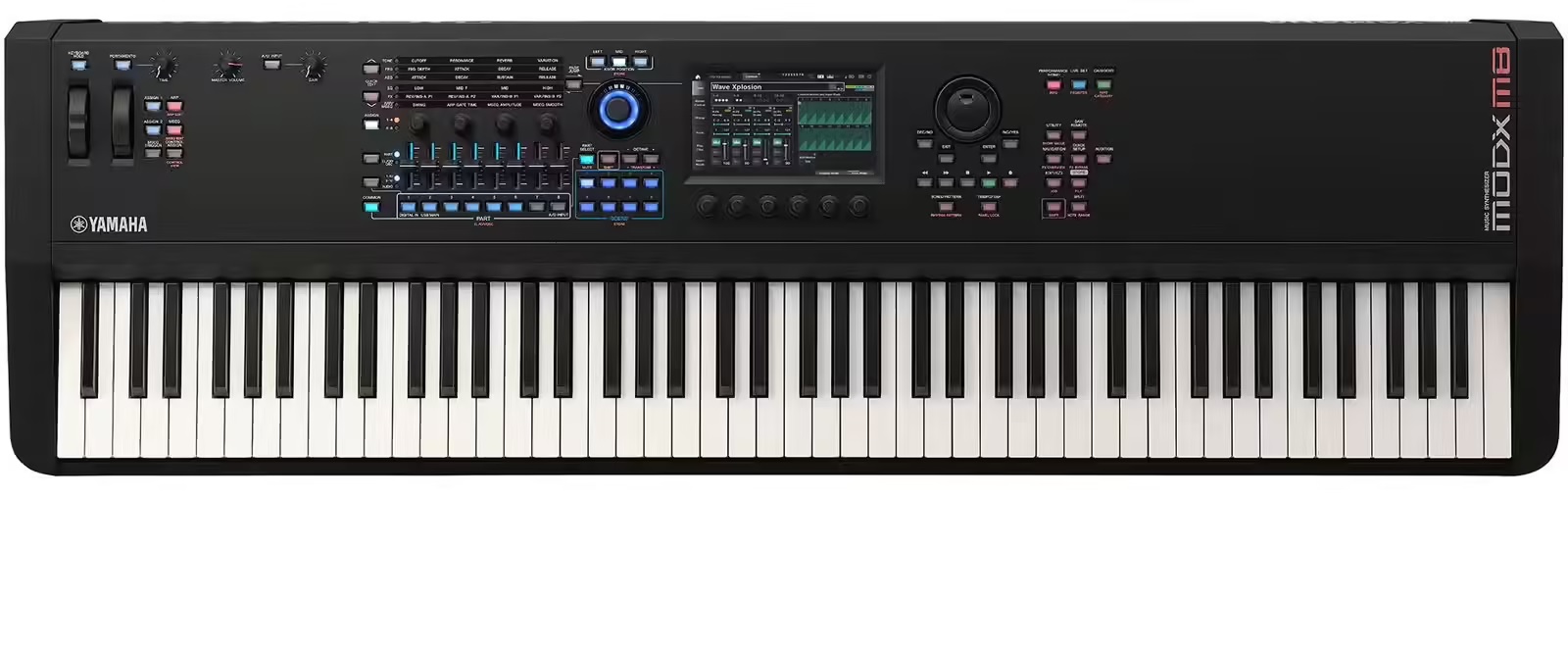

Built for working musicians, the Yamaha MODX M8 synthesizer combines expressive control, streamlined workflow, and exceptional sound in a lightweight design ideal for stage or studio. Featuring three powerful engines that create a stunning variety of sounds, and shared DNA from Yamaha's flagship MONTAGE M, the MODX M8 elevates expression everywhere you perform.

Three Powerful Sound Engines

AN-X ENGINE

Experience expressive, unique analog sounds with the AN-X Engine, fully integrated into the Motion Control system. This engine delivers authentic analog character with two filters, 10 filter types, pulse width modulation, oscillator self sync, ring modulation, FM, wave shaper, and wave folder. Voltage drift and aging settings simulate vintage synth behavior for truly authentic analog warmth.

AWM2 (Advanced Wave Memory 2)

The MODX M8 offers realism and detail with up to 128 Elements per Part, providing an expansive canvas for sound creation. With approximately 10.7 GB of preset AWM2 memory (double the previous MODX/MODX+) and 1.9 GB of user flash memory, you have extensive sonic possibilities for creating "nameable" sounds such as piano, strings, and orchestral instruments.

FM-X

Powerful FM synthesis with 8 operators and 88 algorithms delivers everything from classic electric piano and bell tones to cutting-edge digital textures and evolving soundscapes.

268 Notes Total Polyphony

• 128 notes for AWM2 Preset and User Waveform Parts
• 128 notes for FM-X Parts
• 12 notes for AN-X Parts

Unique Expression & Control

The MODX M8 features dedicated Part and Scene Selection buttons to control 8 Parts per Performance, providing intuitive control that's particularly beneficial for live performances. All knobs, the Super Knob, Pitch Bend, and Mod Wheel are now High Resolution, delivering smoother performance than previous generations.

Motion Control Synthesis Engine

Interact with sound like never before using powerful tools including Motion Sequences that dynamically automate synth and effect parameters in perfect sync with tempo, the Super Knob for controlling dozens of modulations with a single gesture, and Envelope Follower for shaping sound using input from the A/D or another Part.

Hands-On Control

• 8 Faders and 4 Knobs for real-time performance control
• 4 Pedal Inputs for extensive external controller options
• 6 Display Knobs for quick parameter editing
• Master Volume, A/D Input Gain knob, Pitch Bend wheel, Modulation wheel
• Control Slider x 8, Super Knob, Portamento knob, Data Dial
• Assignable switch x 2, MSEQ trigger switch, Portamento switch, Keyboard hold switch

Expanded Workflow & Creativity

Expanded Softsynth Plugin (ESP) - Available Early 2026

Free for all registered MODX M8 owners, ESP replicates the MODX M8 in your favorite Digital Audio Workstation. Create, edit, and mix performances anywhere without the hardware, offering unprecedented stage and studio integration.

USB MIDI 2.0 and Multichannel Audio Interface

Simplify your studio setup with USB MIDI and a multichannel 10 output/4 input audio interface at 44.1kHz. Streamline MIDI recording, virtual instrument monitoring, and multi-track audio recording through a single USB cable. MIDI 2.0 delivers high resolution data for note velocity, Super Knob, pitch bend, and modulation.

Faster, More Intuitive Navigation

The 7" TFT color wide VGA LCD touch screen, combined with 6 display knobs and stereo A/D input with 2 insertion effects, enables quick, intuitive sound editing and operation.

DAW Integration

Use the MODX M8 as a hardware controller for DAWs such as Cubase, Logic, ProTools, and Live with the dedicated DAW Remote button. Control the mixer, transport, Softsynth plugins, and more. Includes Cubase AI for recording, editing, and mixing.

Tone Generator

• Engine: Motion Control Synthesis Engine with AWM2 (128 Elements max.), FM-X (8 Operators, 88 Algorithms), AN-X (3 Oscillators, 1 Noise)
• Maximum Polyphony: AWM2: 128 notes max. (stereo/mono waveforms), FM-X: 128 notes max., AN-X: 12 notes max.
• Multi Timbral: 16 Parts (internal), Audio Input Parts (A/D x1, USB x1)
• Wave Memory: Preset: 10.7 GB (16-bit linear format), User: 1.9 GB
• Performances: 3,427
• Filters: 18 types

Effects & Sound Shaping

Comprehensive effects processing including:

• Reverb x 13 types
• Variation x 88 types
• Insertion A x 88 types, Insertion B x 89 types
• Master Effect x 26 types
• VCM Rotary Speaker effect simulating classic rotary speaker cabinet
• Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
• 18 filter types

Memory

• Live Sets: Preset: 256, User: 2,048

Performance Recording & Sequencing

Performance Recorder

• Note Capacity: 1 Song/Pattern up to approximately 130,000 notes
• Store area: Approximately 520,000 notes each for Pattern and Song
• Note Resolution: 480 ppq (parts per quarter note)
• Tempo: 5-300 BPM
• Sequence formats: MONTAGE M/MODX M original format, SMF formats 0, 1

Arpeggio

• 8 Parts simultaneous (max.)
• 10,922+ preset types
• 256 user types

Sequencer

• 128 patterns with 16 sequence tracks per pattern
• 128 songs with 16 sequence tracks, tempo track, and scene track
• Real time replace, overdub, and punch in/out recording

Audio Interface

At 44.1 kHz Sampling:

• Input: 4 channels (2 stereo)
• Output: 10 channels (5 stereo)

At 44.1/48/96 kHz Sampling:

• Input: 2 channels (1 stereo)
• Output: 2 channels (1 stereo)

Keyboard

• Keys: 88
• Type: GHS Keyboard (Graded Hammer Standard)
• Initial Touch: Yes
• Aftertouch: No

Connectivity

• USB [TO DEVICE], USB [TO HOST]
• MIDI [IN]/[OUT]
• FOOT CONTROLLER [1]/[2]
• FOOT SWITCH [SUSTAIN]/[ASSIGNABLE]
• OUTPUT [L/MONO]/[R] (6.3 mm standard phone jacks)
• [PHONES] (6.3 mm standard stereo phone jack)
• A/D INPUT [L/MONO]/[R] (6.3 mm standard phone jacks)

Display

• 7" TFT Color Wide VGA LCD touch screen

Power

• Consumption: 19 W (when using PA-300C AC adaptor)

Physical

• Dimensions: 1,310 mm W x 152 mm H x 391 mm D (51-9/16" x 5-15/16" x 15-3/8")
• Weight: 13.6 kg (29 lb, 15 oz)

Factory Included Accessories

• AC adaptor: PA-300C
• Quick guide
• Cubase AI Download Information
• Expanded Softsynth Plugin for MONTAGE M/MODX M Download Information
• About downloading manuals
• Welcome card
