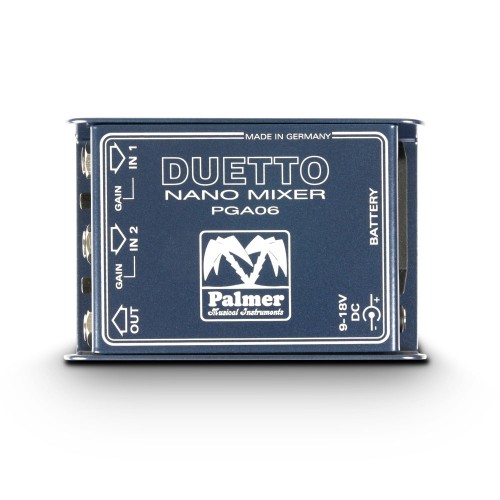

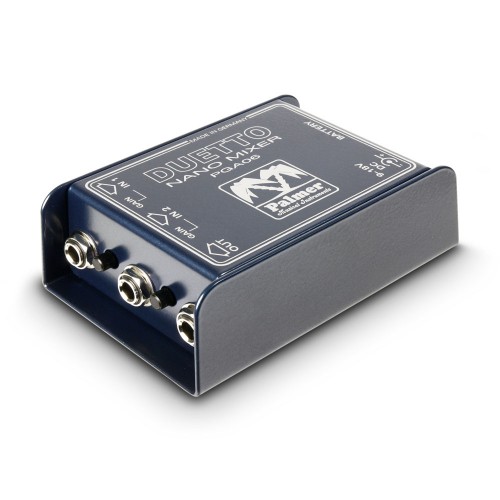

The Palmer DUETTO is a small format active mixer. Input sensitivity and impedance are optimised for electric guitar applications but the unit also works well with other instruments and devices with line level signals.

The DUETTO allows two active sources to be mixed to a single amplifier input. Each input has a volume controller for level adjustment. The DUETTO is typically used when guitar teachers want to practise with their students through a single input amp. The DUETTO is however very versatile and can also be used, for example, as cable driver, mono merger and recording preamp.

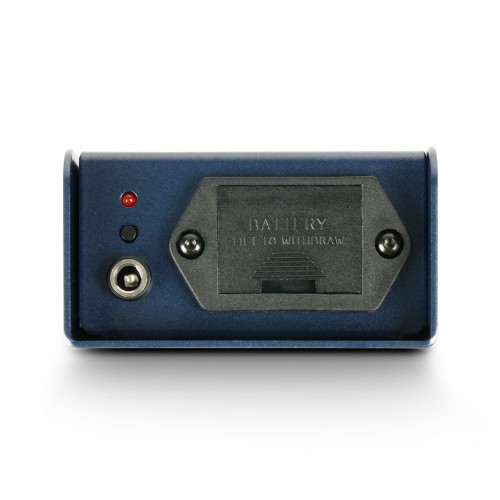

Due to its low power consumption, the DUETTO can be powered by a 9V battery permitting extended operation. A DC input is provided for use with a power adapter.

Product type

Merger

Type

active

Inputs

2

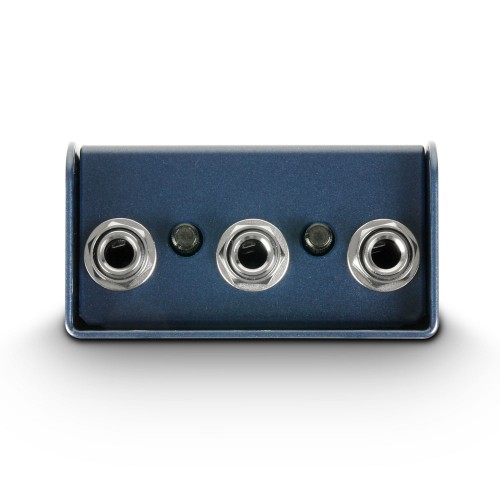

Input connectors

6.3 mm jack

Input impedance

1 M Ohm(s)

Adjustable input

Yes

Outputs

1

Output connectors

6.3 mm jack

Adjustable output

No

Output impedance

10 k Ohm(s)

Indicators

Power

Controls

input level

Power supply

9 V block, 9 V DC power supply

Width

125 mm

Depth

80 mm

Height

45 mm

Cabinet material

sheet steel

Cabinet surface

Powder coated

Weight

0,48 kg
