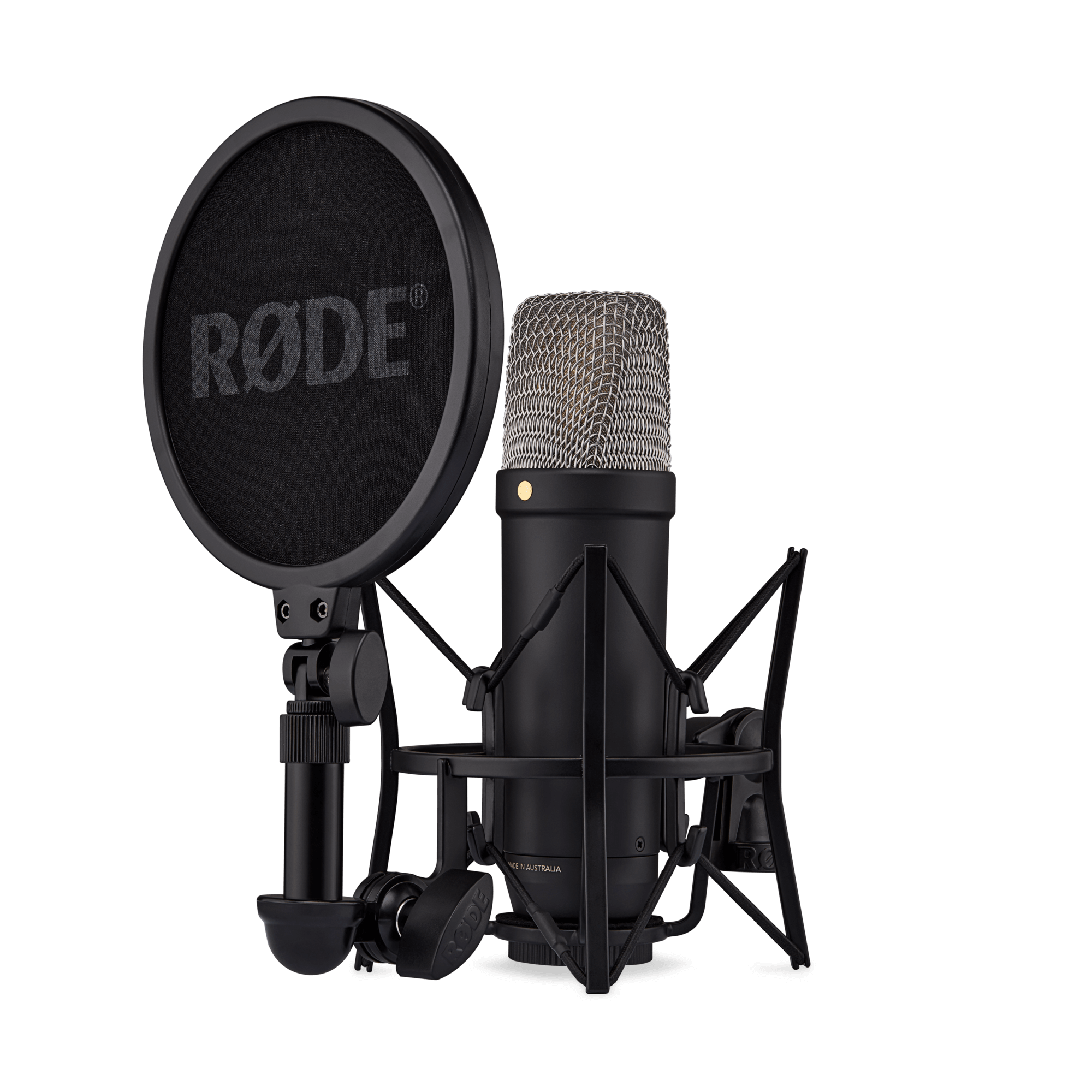

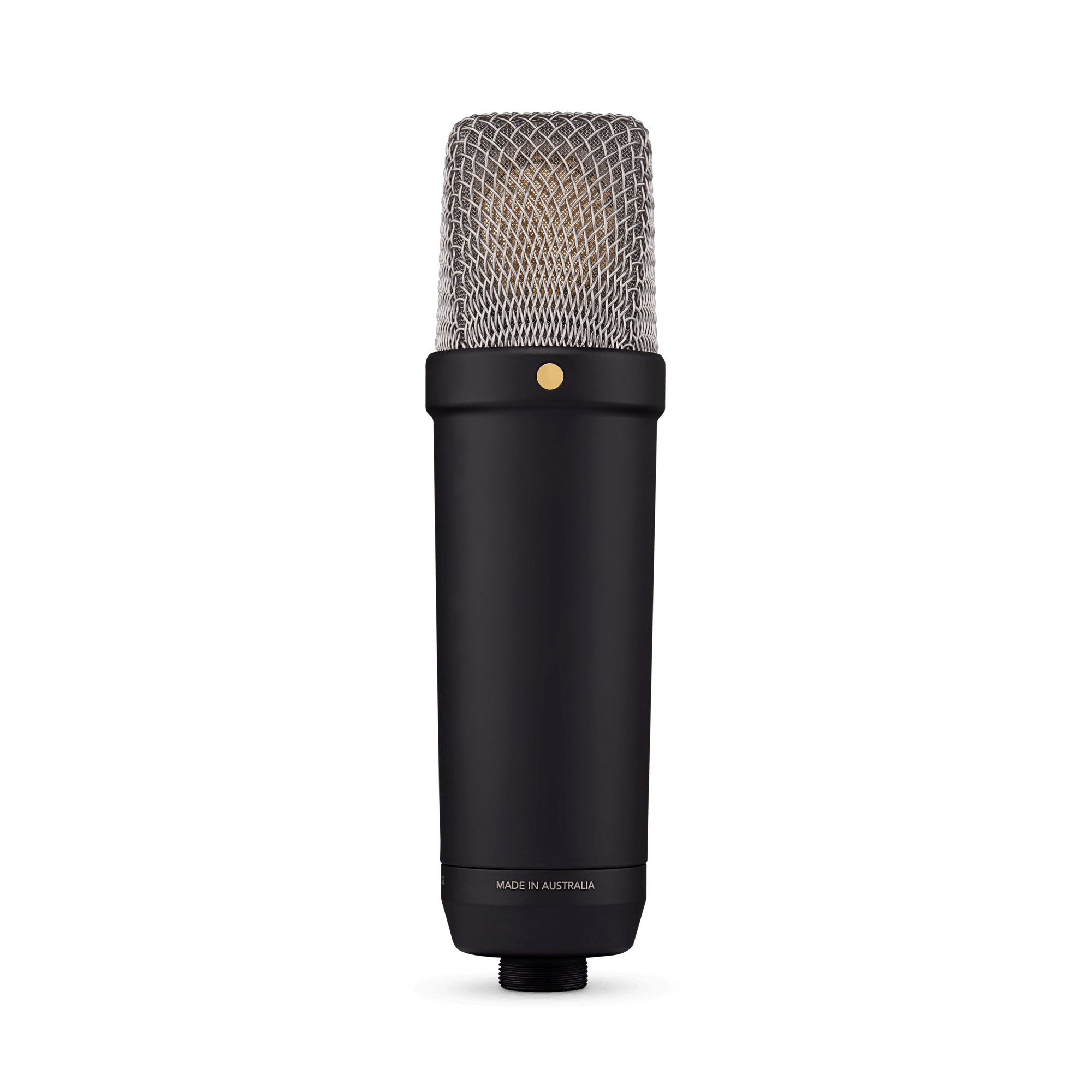

The NT1 5th Generation is a revolutionary studio condenser microphone that fuses the classic sound signature of the iconic NT1 with cutting-edge, next-generation technology. It features RØDE’s groundbreaking (patent-pending) Dual Connect output, offering both XLR and USB connectivity for incredible versatility, a world-first “unclippable” 32-bit float digital output, advanced digital signal processing, and more, all while delivering the same warm, silky character, extremely low noise, and high SPL handling that the NT1 is renowned for. The NT1 5th Generation is a true studio workhorse that excels on everything from vocals and speech, to guitar, piano, drums and percussion – the ultimate studio microphone.

• Large-diaphragm cardioid condenser microphone
• HF6 1-inch true condenser capsule
• Smooth frequency response, high sensitivity and high SPL handling
• Exceptionally low noise (4dBA) – the world’s quietest studio condenser microphone
• Patent-pending Dual Connect output with both XLR and USB connectivity
• World-first 32-bit float digital output
• Ultra-high-resolution (up to 192kHz) analog-to-digital conversion
• On-board DSP for advanced APHEX® audio processing

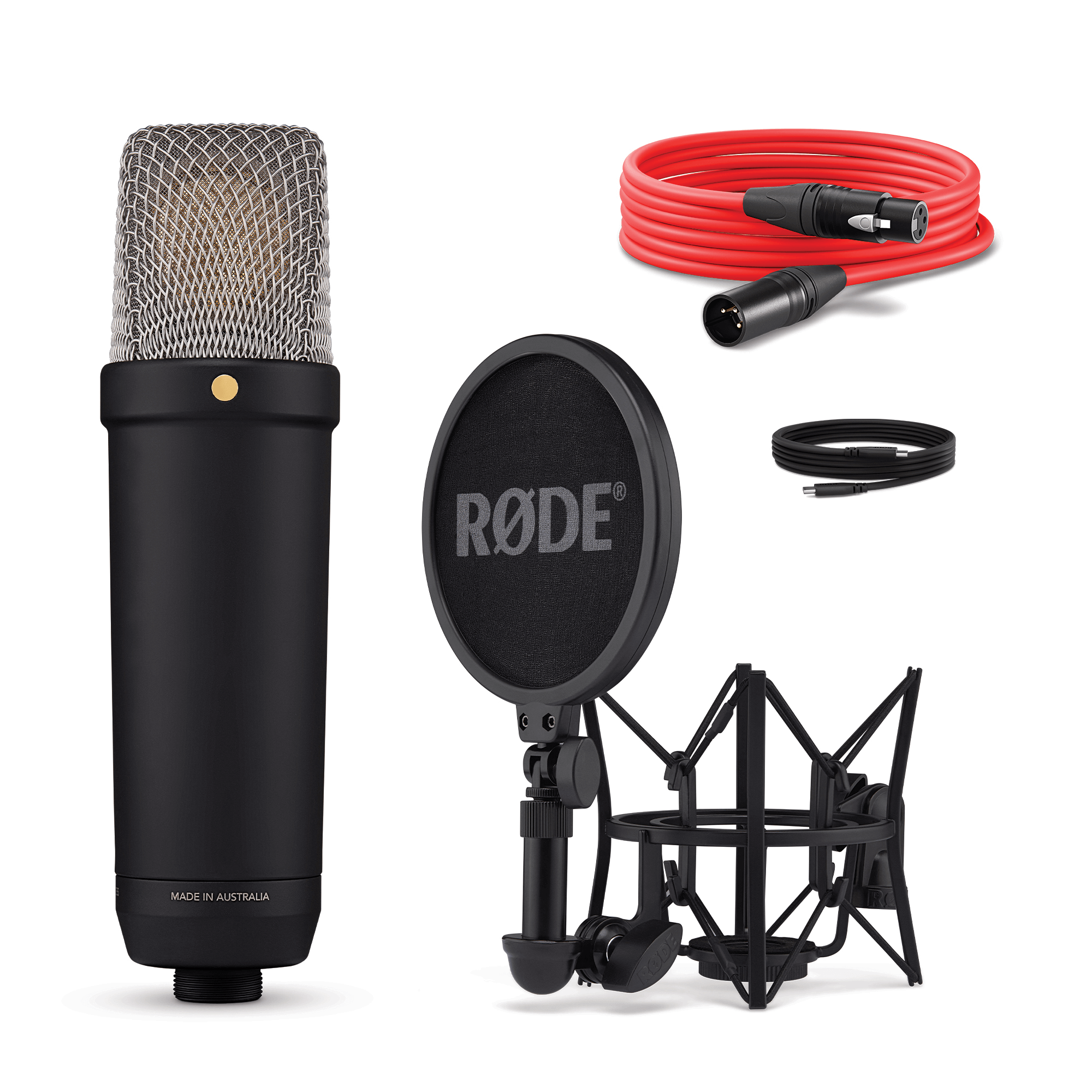

• Studio-grade shock mount and pop filter, XLR and USB cables included
• Available in black or silver with a rugged aluminium body and high-grade finishes
• Designed and made in RØDE’s precision manufacturing facilities in Sydney, Australia

Acoustic Principle

Pressure gradient

Active Electronics

JFET impedance converter with bipolar output buffer

Capsule

1.00"

Polar Pattern

Cardioid

Address Type

Side

Frequency Range

20Hz - 20kHz

Output Impedance

100Ω

Maximum SPL

142 dB SPL

Equivalent Noise (A-Weighted)

4dBA

Sensitivity

-32 dB re 1 Volt/Pascal (25 mV @ 94 dB SPL) +/- 2 dB @ 1 kHz

Analogue Power Requirements

Via XLR: P48

Analogue Output Connection

3-pin XLR
