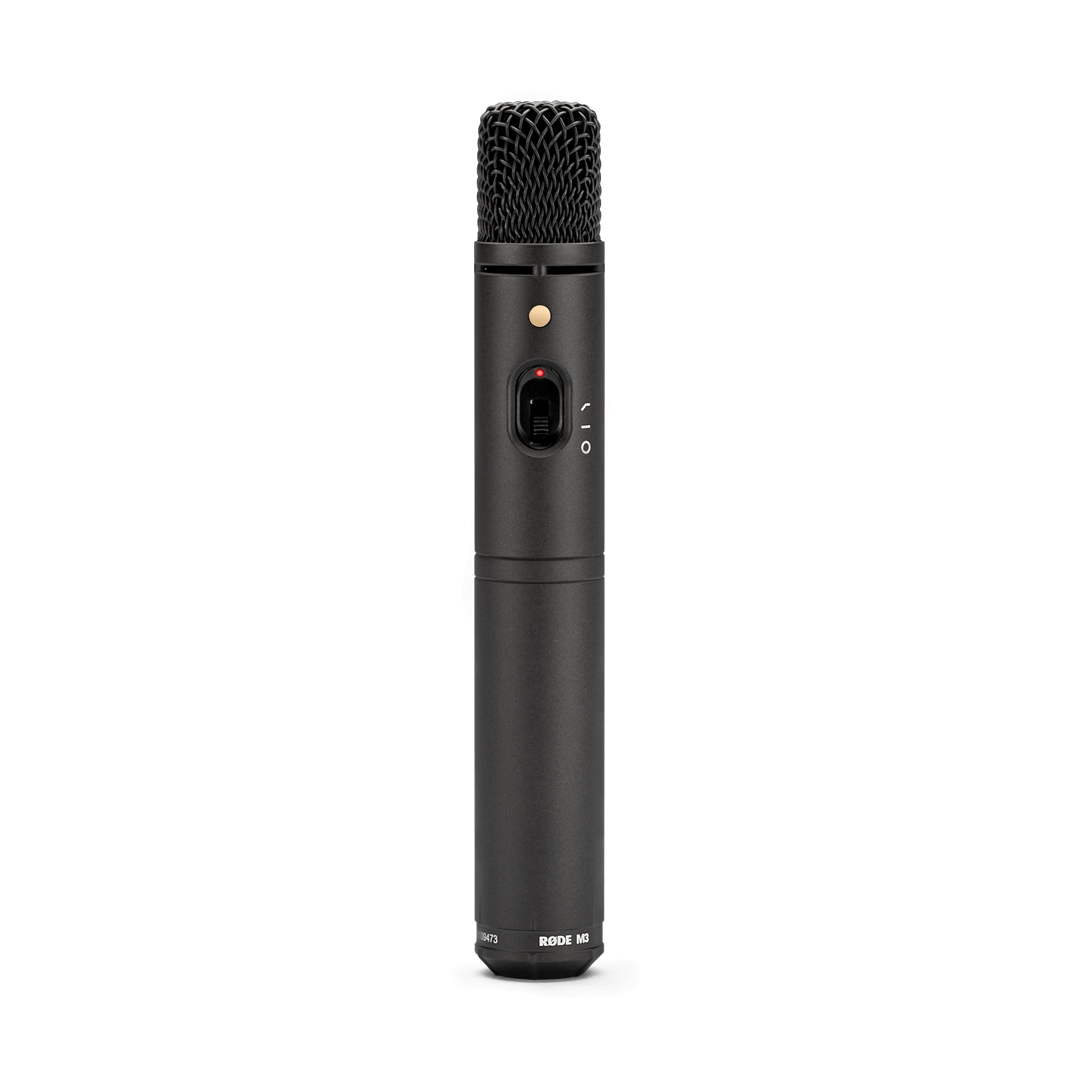

The M3 highly versatile end-address condenser microphone is designed to excel in a wide variety of recording situations in the studio, on stage or on location. Featuring an internally shock-mounted 1/2-inch condenser capsule, the M3 can either be powered by P48 phantom power or an internal 9V battery. It offers the versatility of a selectable pad (-10dB, -20dB) and high-pass filter (80Hz), making it ideal for recording everything from electric guitar to vocals to drums.

• Versatile end-address condenser microphone
• Cardioid polar pattern
• Robust, all-metal body
• Selectable pad (-10dB, -20dB) and high-pass filter (80Hz)

Acoustic Principle

Pressure gradient

Active Electronics

JFET impedance converter with bipolar output buffer

Capsule

0.50"

Address Type

End

Frequency Range

40Hz - 20kHz (selectable high-pass filter @ 80Hz)

Output Impedance

200Ω

Maximum SPL

142dB SPL

Maximum Output Level

9.2mV (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity

-40.0dB re 1 Volt/Pascal (6.30mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Equivalent Noise Level (A-Weighted)

21dBA

Output Connection

XLR

Power Requirements

9V battery, P24 or P48
