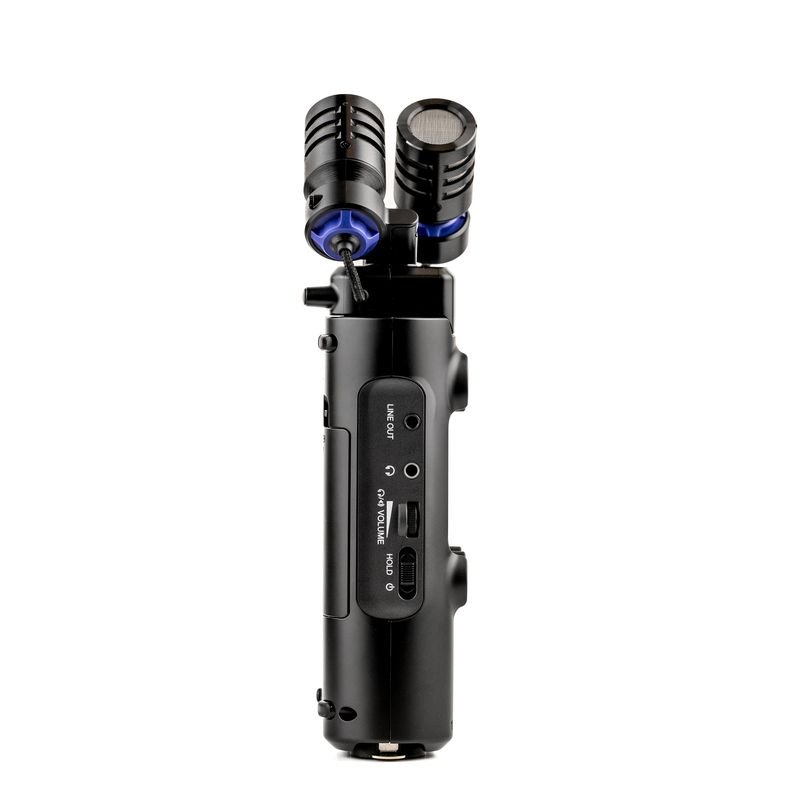

Your Best Work Starts Here

The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

The Largest Mics Ever on a Handy Recorder

The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and fidelity.

F-Series Preamps, Now in Your Hands

The H5studio's inputs feature our F-series preamps, giving your audio unmatched clarity (-127 dBu EIN).  With dual AD converters and

32-bit float, they deliver an impressive 132dB dynamic range, capturing everything without noise or distortion.

Complete Control, Zero Clipping

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires

post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.

The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production.

Six Tracks Up to 192 kHz

The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.

Protect Your Sound

Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.

Advanced Limiters

The H5studio features “advanced look-ahead” limiters which anticipate potential overloads and prevent distortion before it reaches your track.

The Inputs

The two locking XLR/TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.

Next Generation Capsule System

The H5studio’s 3.0 capsule system* supports 32-bit float and gives creators more options to use the right mic for their recording.

*Compatible with SSH-6e , EXH-6e, WLM-1

USB Audio Interface

The H5studio is a 4-in/2-out USB audio interface for Mac, Windows,

iOS, and Android, supporting 32-bit float and 16/24-bit recording.

Stream live and simultaneously record a backup to microSD.

INPUT AND OUTPUT CHANNELS

INPUTS

OUTPUTS

RECORDER

CLICK HERE for information about microSD cards that have been confirmed to work with this unit.

DISPLAY

USB

REMOTE

POWER

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording

48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 4-track (XYH-5s and inputs 1–2) recording

48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.

Note: 0 dBu = 0.775 Vrms
