ANNY – your battery-powered sound solution for truly anywhere: whether in the city, in the garden, at gatherings, at sports events, at school and dance events, in bars, at parties, wherever you are, with ANNY you can provide professional sound and create unforgettable moments.

Equipped with a 10" woofer, 1" tweeter, wheels and telescopic handle, ANNY 10 offers an ideal combination of portability and sound performance.

With an integrated 6-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and outstanding sound quality in a compact and robust design. ANNY 10 impresses with its versatile connection options: two microphone/line combo inputs, one stereo channel with 3.5mm jack (AUX) and RCA inputs as well as Bluetooth 5.0 with AAC codec.

This array of inputs enables a wide range of setups with a mix of speech and music. The footswitch input allows you to switch the reverb & delay effects easily and hands-free with an external footswitch while playing or singing.

To guarantee clear and audible announcements in any situation, you can use the “Priority” function. To do this, simply select your microphone in the priority settings and the music will automatically be attenuated when you use your microphone.

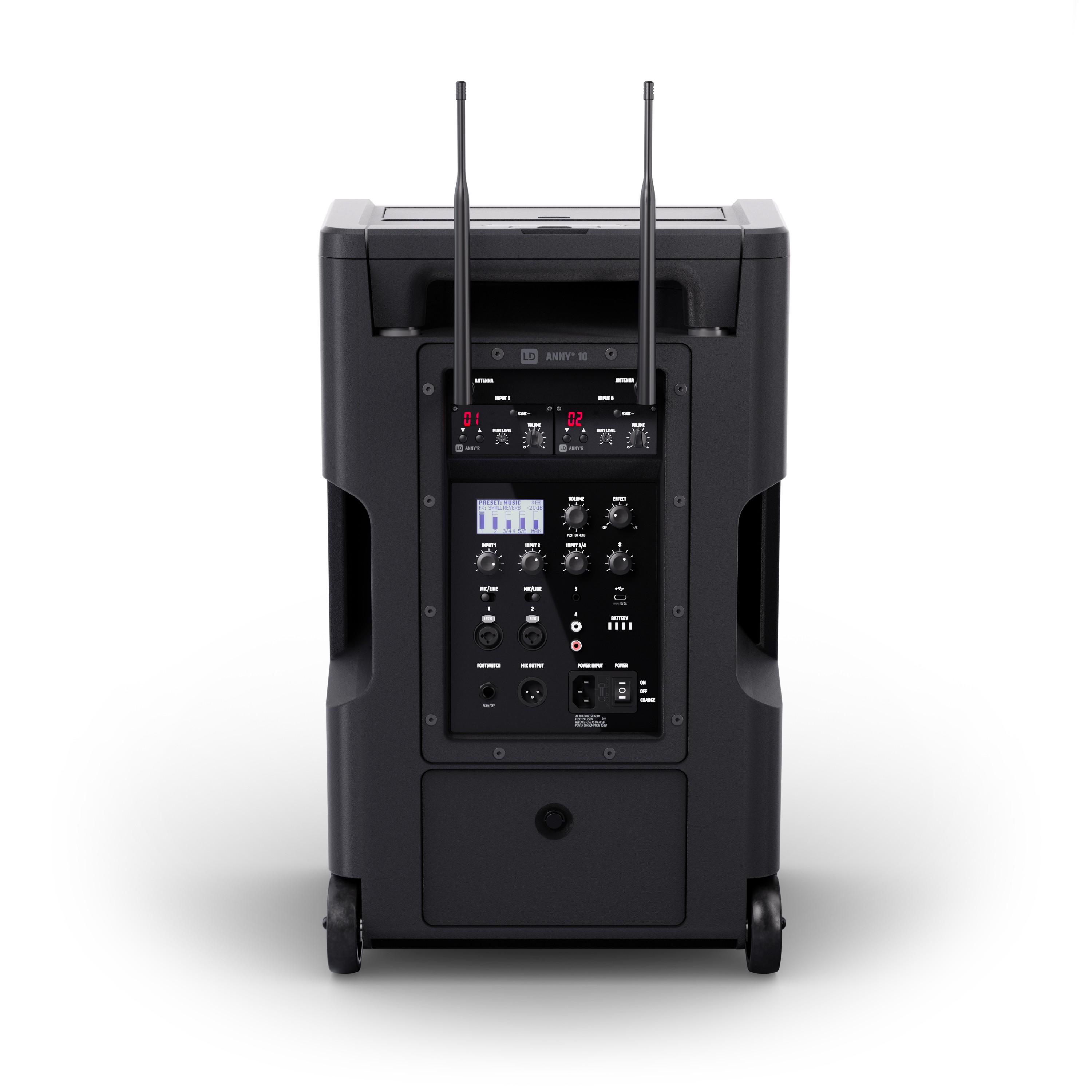

The ANNY 10 HHD 2 variant is already equipped with two wireless microphones – simply insert the included AA batteries and you're ready to go. The volume can be adjusted separately on the corresponding receiver module on the back of the ANNY. This expands your connection options by two additional input channels, giving you even more combination options.

Further adding to its versatility, True Wireless Stereo (TWS) allows you to link two ANNY 10 loudspeakers to enjoy your music in stereo – a quick upgrade that creates a powerful sound solution for larger parties and events.

Don't worry, you can turn your ANNY up all the way, because the built-in DynX® DSP (Gen. 2) produces a distortion-free, clean and powerful sound even at maximum volume. Thanks to the energy-saving ECO preset, ANNY can last especially long for background music or voice-only applications. At medium volume, this mode enables continuous operation for up to 25 hours. For your party at maximum volume in MUSIC preset, the battery lasts up to an impressive 5 hours at full capacity. You can further extend the operating time using the optionally available backup batteries; simply replace the empty batteries with fully charged ones in a few seconds and you're ready to continue. To ensure that your mobile phone or tablet is always ready for use, you can place it in the integrated holder and charge it via the USB-C port on the back of ANNY.

If you travel a lot with your ANNY 10, you'll appreciate the integrated wheels and telescopic handle, which allows you to pull the speaker like a trolley. Thanks to the robust housing and the two handles, ANNY 10 is extremely rugged and suitable for use both on the floor and on a speaker stand. A perfectly fitting, water-repellent transport bag with additional storage space is available as an accessory, which provides protection against the elements and doubles as a practical storage solution.

So go ahead and create unforgettable moments. With ANNY by your side, you'll create a great atmosphere and first-class sound – wherever you are.

General

Product type

Battery-powered PA speaker

Type

Set (1x ANNY 10, 2x receiver, 2x handheld microphone)

Frequency range

655 - 679 MHz

Weight

18,72 kg

LDANNY10 - LD Systems ANNY® 10 HHD 2 B6 10" Portable battery-powered Bluetooth® PA System with mixer

Product type

Battery-powered PA speaker

Type

Powered

Color

Black

Channels

6 channels

System output (RMS)

80 W

System output (Peak)

160 W

Max. SPL Average (Sine burst)

111 dB

Max. SPL Peak (Sine burst)

118 dB

Frequency response (-10dB)

45 Hz - 20 kHz

Crossover frequency

1800 Hz

Dispersion (H x V)

120° x 60 °

Width

361 mm

Depth

300 mm

Total Height

566 mm

Features

3-band EQ, effects (reverb & delay) , 6-channel mixer with system presets , Priority/ducking mode , TWS , USB-C port für mobile device charging

LOW/MID WOOFER:

Woofer dimensions

10 "

Woofer dimensions (mm)

254 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil (inch)

2 "

Controls

effect , Input 1 Mic/Line switch , Input 1 volume , Input 2 Mic/Line switch , Input 2 volume , Input 3+4 volume , Input 5+6 (Bluetooth) volume , Main volume / menu navigation , Power

Indicators

multifunction LC display , power/battery status

Woofer voice coil (mm)

51 mm

Cabinet construction

Bass Reflex

Housing material

Polypropylene

Weight

18 kg

HF DRIVER:

Horn

Constant directivity

Tweeter dimensions

1 "

Tweeter dimensions (mm)

25 mm

Tweeter magnet

Ferrite

Tweeter brand

Custom-made

Tweeter voice coil

1 "

Tweeter voice coil (mm)

25 mm

AMPLIFIER MODULE (INTEGRATED):

Amplifier

Class D

Protection circuits

Short circuit , thermal overload

Ambient temperature (operating)

0°C - 40 °C

Relative Humidity

0 - 80% (non condensing)

Fuse

T2 AL 250V

Mains connector

IEC

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

150 W

Physical inputs

5

Physical input connectors

2 x 6.3 mm / XLR combo , 2 x RCA, 3.5 mm jack

Mix output

1

Mix output connector

XLR male

Bluetooth Standard

5.0

Bluetooth Audio Decoder

AAC , SBC

RECHARGEABLE BATTERY:

Rechargable batteries

2 x 12V / 5000mAh

Battery technology

Lead Acid

Battery life music (MUSIC, full volume)

5 Hours

Battery life music (ECO, mid volume)

25 Hours

Charging time (80%, no signal)

3.5 hours

Charging time (full recharge)

7 hours (no signal)

LDANNYMDB6 - LD Systems ANNY® 10 HHD 2 B6 Wireless Handheld Microphone for ANNY®

Product type

Battery-powered PA speaker accessories

Type

Microphones

Transmission frequency range

655 - 679 MHz

Channels

12

Microphone type

Dynamic

Directivity

Cardioid

Frequency response

60 Hz - 20 kHz

Signal-to-noise ratio

104 dB

Rated HF output power

10 mW

Power supply

2 x AA battery

Operating time

>8 h (with alkaline batteries)

Length

250.4 mm

Diameter

32.5 mm

Other features

incl. batteries , IR frequency synchronisation

Controls

Power On/Off

Indicators

power/battery status low (LED)

Weight

0,2 kg

LDANNYRB6 - LD Systems ANNY® 10 HHD 2 B6 Receiver Module for ANNY®

Product type

Battery-powered PA speaker accessories

Type

Receivers

Modulation Type

FM

Transmission frequency range

655 - 679 MHz

Channels

12

Frequency response

50 Hz - 17 kHz

Controls

Mute Level (Squelch) , Power / Volume , SYNC , Value Down , Value Up

Indicators

AF (audio signal) , LED Display , RF (radio signal)

Connectors

Audio outputs , BNC-Antenna

Weight

0,08 kg
