Loaded with player-oriented features and iconic style, the Wolfgang Special Striped is a highly-responsive and huge-sounding instrument that was born to crank out some serious rock.

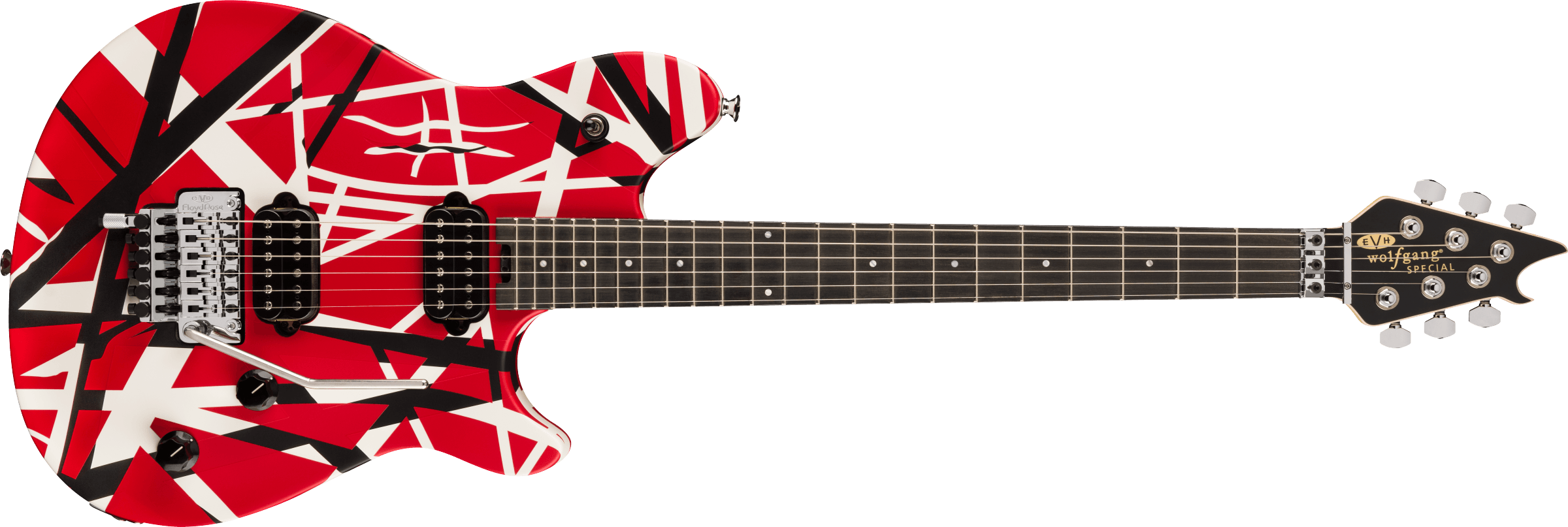

Sporting some eye popping striped finishes, Red with Black and White Stripes, Black with Yellow Stripes and White with Black Stripes, black headstock and chrome hardware, the Wolfgang Special Striped features a basswood body with arched top, robust graphite-reinforced quartersawn maple neck - carved and rolled to EVH's exacting specifications and a speedy 12"-16" compound radius ebony fingerboard with 22 jumbo frets for facilitating energetic riffing and blazing leads. A heel-mount truss rod adjustment wheel also makes for quick and easy neck relief tweaks, a feature guitar techs everywhere will thank you for.

The crystal clear custom-designed EVH Wolfgang Humbucking pickups are mounted directly to the body, supplying girth and sparkle, as well as near-endless sustain to power chords and melody lines.

Every component of this guitar has been selected and positioned for high-speed playing. The low-friction volume knob lets you perform speedy violin-like volume swells with ease while the tone knob resists easy turning - avoiding unwanted tonal shifts as your picking hand flies furiously across the strings. The rock-solid EVH-branded Floyd Rose® locking tremolo bridge combines with the Floyd Rose locking nut to maintain precise tuning, no matter how insane your whammy-bar histrionics get. The EVH D-Tuna® retunes to Drop-D and back with strict accuracy at the mere flick of a finger, making this the only guitar you'll need onstage.

General

SERIES: Wolfgang® Striped
ORIENTATION: Right-Hand
COLOR: Red with Black and White Stripes
COUNTRY OF ORIGIN: MX

Neck

HEADSTOCK: EVH® Wolfgang®
NECK MATERIAL: Quartersawn Maple
NECK FINISH: Hand-Rubbed Satin Urethane
NECK SHAPE: Wolfgang® Backshape
NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
NECK THICKNESS: .805" at 3rd & .890" at 12th Fret
FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIAL: Ebony
POSITION INLAYS: White Dot
SIDE DOTS: White
NUMBER OF FRETS: 22
TRUSS ROD: EVH®-Branded with Wheel
TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel
STRING NUT: Floyd Rose® R2 Locking
NUT WIDTH: 1.625" (41.3 mm)
NUT MATERIAL: Floyd Rose® R2 Locking

Body

BODY: Basswood
BODY FINISH: Satin Urethane
BODY SHAPE: Wolfgang®
BODY MATERIAL: Basswood

Hardware

BRIDGE: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
BRIDGE MOUNTING: 2-Point Modern
TREMOLO BLOCK: Brass
PICKUP COVERS: Black
CONTROL KNOBS: Black Knurled with White Indicator
SWITCH TIP: Black
HARDWARE FINISH: Chrome
TUNING MACHINES: EVH®-Branded Gotoh®
STRING TREES: Floyd Rose® Retainer Bar
STRINGS: EVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARM: Floyd Rose® 1000 Series Locking
STRAP BUTTONS: Oversized

Electronics

BRIDGE PICKUP: Direct Mount EVH® Wolfgang® Humbucking
NECK PICKUP: Direct Mount EVH® Wolfgang® Humbucking
PICKUP CONFIGURATION: HH
CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
SWITCHING: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
