Reamping is a valuable recording technique used by many sound engineers.

It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.

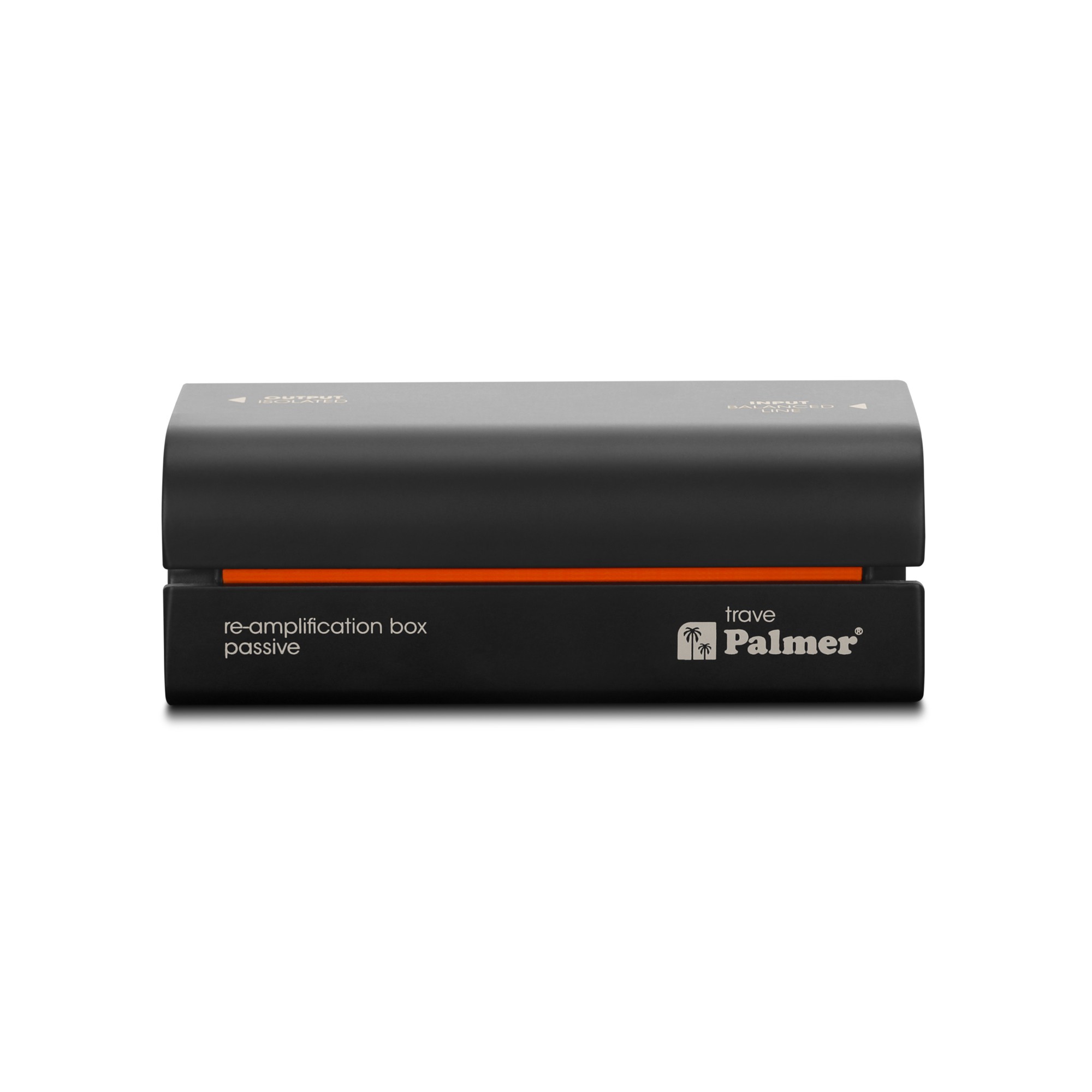

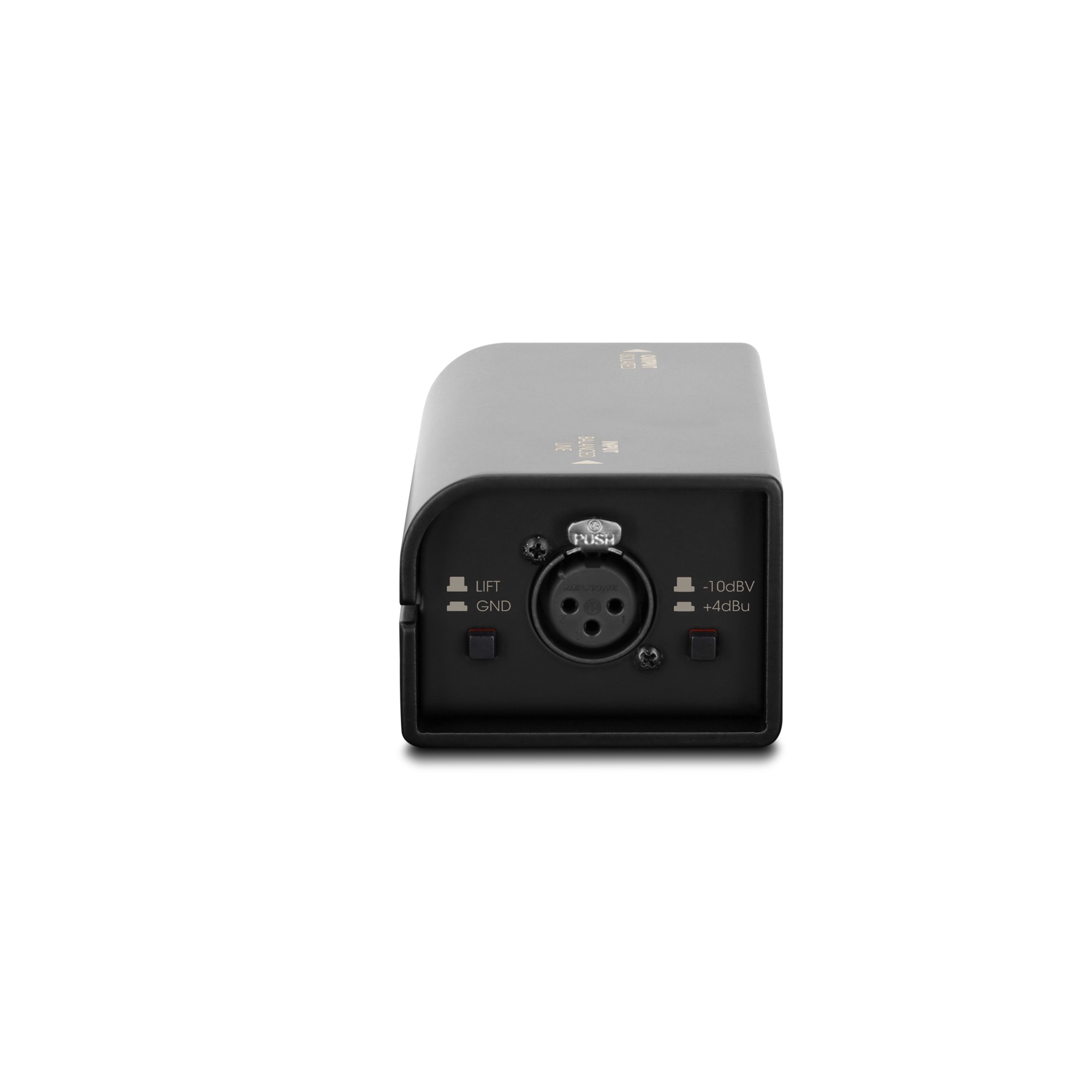

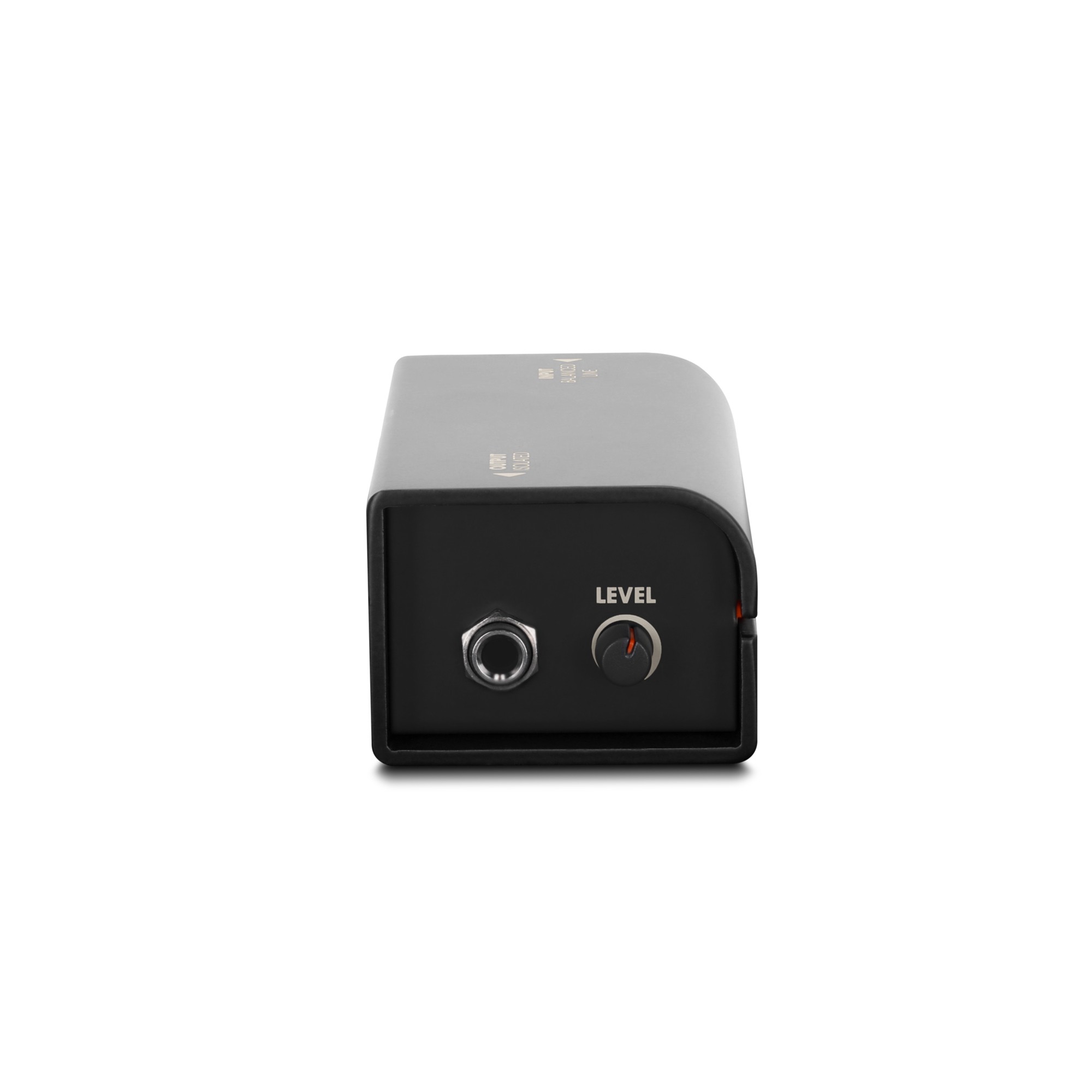

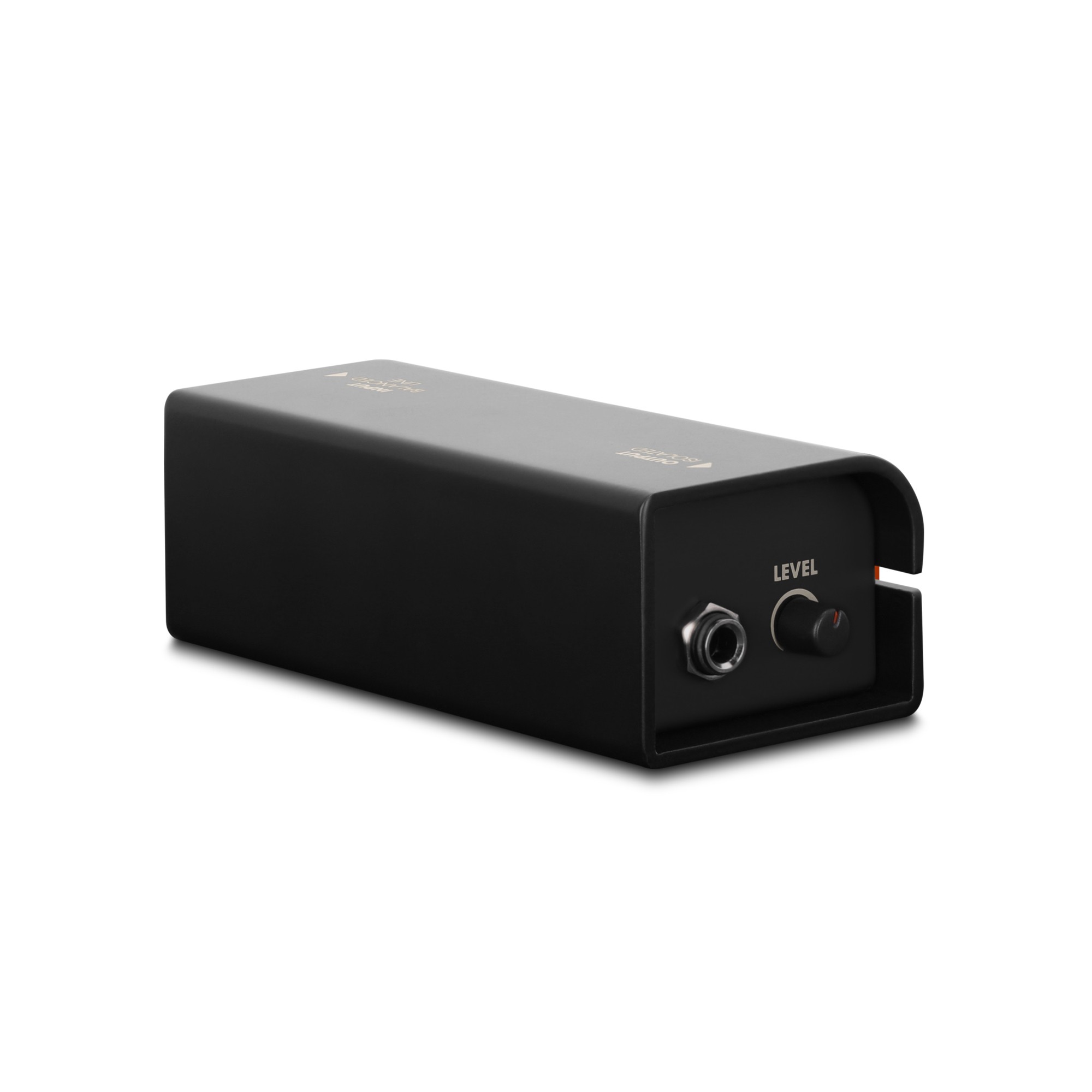

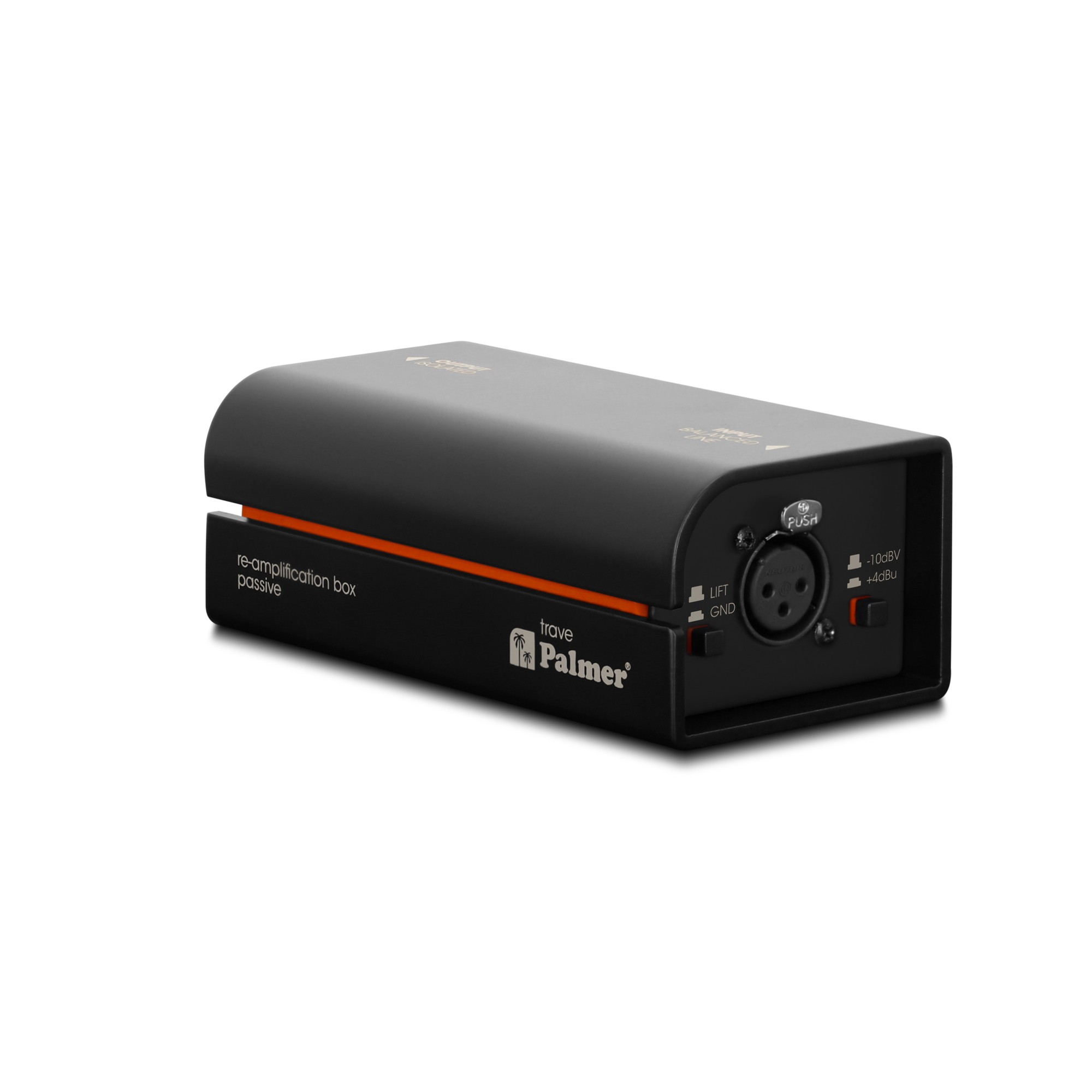

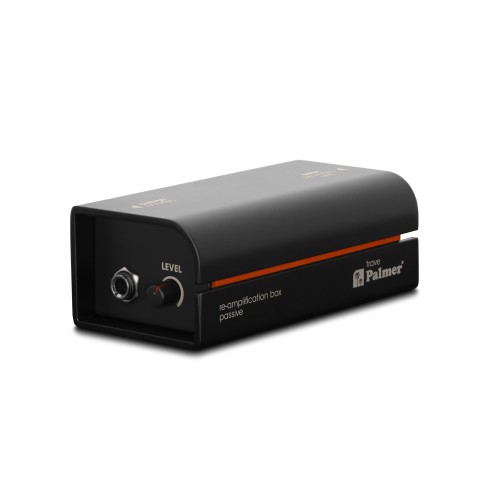

The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.

With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.

General

Product type

DI box

Type

passive

Channels

1

Transformer isolated

Yes

Number of inputs

1

Input type

balanced

Input connectors

XLR

Outputs

1

Output type

unbalanced

Output connectors

6.3 mm jack

Ground lift switch

yes

More features

Input Level Switch, Output Level Potentiometer

Housing material

Aluminium continuous casting

Height

140 mm

Width

50 mm

Depth

68 mm

Ambient temperature (in operation)

-20 - 70 °C

Relative Humidity

< 80% (non-condensing)

Accessories (included)

Inscription label (tour label), rubber feet

Weight

0,395 kg

Audio

Max. input level (< 1% THD, 20 Hz)

+19 dBu

Max. input level (< 1% THD, 1 kHz)

+32 dBu

Frequency response (±1 dB, relative 1 kHz)

10 Hz - 20 kHz

Input impedance (1 kHz, max. Level, -10dBV)

5 Ohm

Output impedance (1 kHz, max. Level, -10dBV)

4.2

THD (30 Hz, +4 dBu, unity, unweighted)

<0,08%

THD (1 kHz, +4 dBu, unity, unweighted)

<0,003%

IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)

<0,004%

Transformer ratio

1:3
