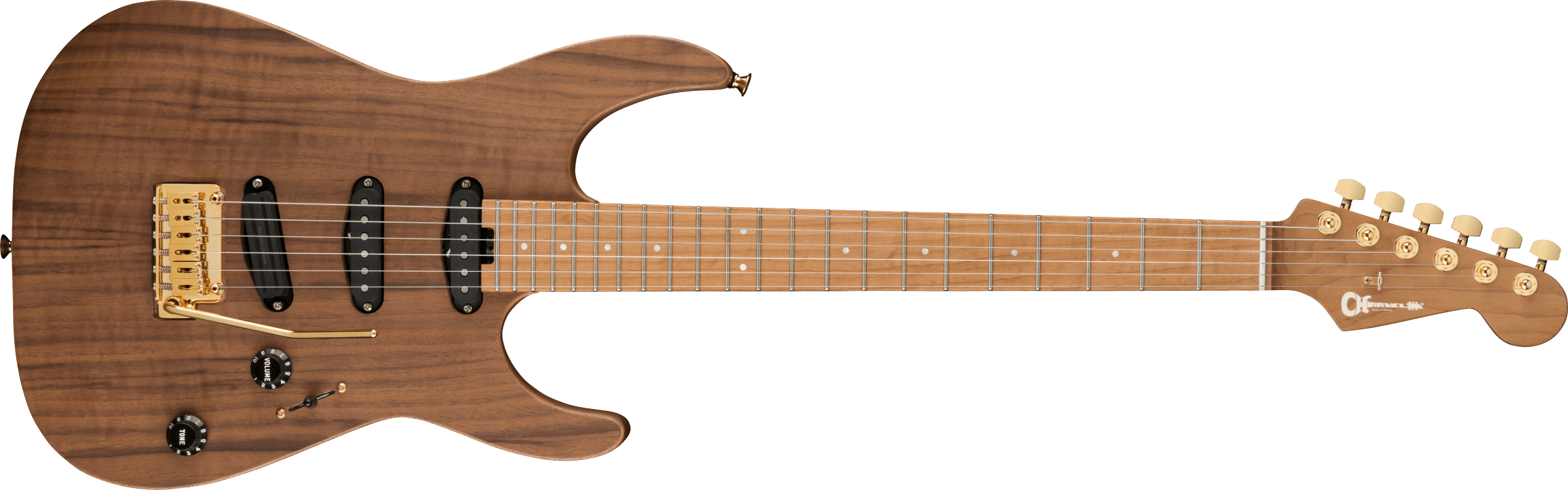

Charvel® continues to up the ante for modern high performance combined with standout style and full-spectrum tone with the Pro-Mod DK22 SSS 2PT CM Mahogany with Walnut, a sleek new instrument designed especially for a new breed of player whose musical vision and versatility knows no bounds.

General

• SERIES: Pro-Mod
• ORIENTATION: Right-Hand
• COLOR: Natural
• COUNTRY OF ORIGIN: MX

Neck

• HEADSTOCK: Licensed Fender® Stratocaster®
• NECK MATERIAL: Caramelized Maple
• NECK FINISH: Hand-Rubbed Satin Urethane
• NECK SHAPE: Speed Neck with Rolled Fingerboard Edges
• NECK CONSTRUCTION: Bolt-On with Graphite Reinforcement
• FINGERBOARD RADIUS: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• FINGERBOARD MATERIAL: Caramelized Maple
• POSITION INLAYS: 4mm Pearloid Dot
• SIDE DOTS: Luminlay®
• NUMBER OF FRETS: 22
• TRUSS ROD: Dual-Action with Wheel
• TRUSS ROD NUT: Heel-Mount Truss Rod Adjustment Wheel
• STRING NUT: Graph Tech® TUSQ® XL
• NUT WIDTH: 1.6875" (42.86 mm)
• NUT MATERIAL: Graph Tech® TUSQ® XL

Body

• BODY: Mahogany
• BODY FINISH: Satin
• BODY SHAPE: Dinky®
• BODY TOP: Figured Walnut
• BODY STYLE: Solid Body
• BODY MATERIAL: Mahogany

Hardware

• BRIDGE: Gotoh® Custom 510 Tremolo
• PICKGUARD: None
• PICKUP COVERS: Black
• CONTROL KNOBS: Stratocaster®-Style Skirt
• SWITCH TIP: Black
• HARDWARE FINISH: Gold
• TUNING MACHINES: Charvel®-Branded Die-Cast Locking
• STRING TREES: Fender® Standard String Guide
• STRINGS: Nickel Plated Steel (.009-.042 Gauges)
• TREMOLO ARM: Gotoh®
• NECK PLATE: None - 4-Bolt Sculpted Heel
• STRAP BUTTONS: Standard

Electronics

• BRIDGE PICKUP: Seymour Duncan® Custom Hot Rails® Strat® SHR-1B
• MIDDLE PICKUP: Custom Seymour Duncan® Flat Strat® SSL-6 Single-Coil
• NECK PICKUP: Custom Seymour Duncan® Flat Strat® SSL-6 RWRP Single-Coil
• PICKUP CONFIGURATION: SSS
• CONTROLS: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
• SWITCHING: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup

Measurements

• DIMENSIONS: 4.40x15.20x42.10 IN
• FRET SIZE: Jumbo
• SCALE LENGTH: 25.5" (64.77 cm)

Accessories

• SADDLE HEIGHT WRENCH: Yes

Miscellaneous

• UNIQUE FEATURES: Luminlay® Side Dots
