Beyond the Effect Horizon

Discover why top artists and producers have chosen Eventide for over 50 years with the H90 Harmonizer®, Eventide’s next-generation multi-effects pedal. Whether you want high-quality bread-and-butter effects or experimental sounds unheard, the H90 has everything you need to inspire your creativity with an intuitive UI designed with players in mind, 62 effect algorithms, and hundreds of Program combinations curated for a variety of instruments and genres. With its comprehensive I/O and flexible routing options, the H90 is designed to be the heart of your rig.

New Technology, New Effects

The H90 Harmonizer features modern ARM-based architecture derived from the world’s most powerful effects processor, Eventide’s flagship H9000 Harmonizer. This paves the way for the ongoing creation of more advanced effects processing techniques. As a result, the pedal not only offers the iconic reverbs, delays, modulation, and pitch-shifting effects of the H9 Max but goes far beyond with ten new powerful algorithms including state-of-the-art, fast-tracking, and warble-free Polyphonic Pitch Shifting. Eventide’s proprietary SIFT (Spectral Instantaneous Frequency Tracking) technology clears the road ahead for next-gen effects both long-imagined and unimaginable.

That’s not all. The upgraded DSP power of the H90 enhances the performance of all previous H9 Max algorithms. We’ve also developed new features and enhancements, such as quantization and improved pitch tracking, as well as additional features previously only available on the dot9 pedals and plug-ins.

Twin-Turbo Program Power

Two of these already impressive algorithms can be combined into a Program to create novel, inspiring sounds. The H90 Harmonizer’s dual algorithm design features true spillover between Programs, series or parallel effect routing, and flexible I/O.

Factory Programs

The H90 Harmonizer comes with hundreds of factory Programs that can be loaded using either SELECT or BANK mode. In SELECT mode, you can navigate your Playlist sequentially without ever missing a detail thanks to the OLED display. In BANK mode, you can quickly load from a bank of three Programs, perfect for cueing up the range of sounds for a song. Organizing your favorite sounds has never been easier, simply load a new Playlist and you’re ready for the next gig!

Live Performance Machine

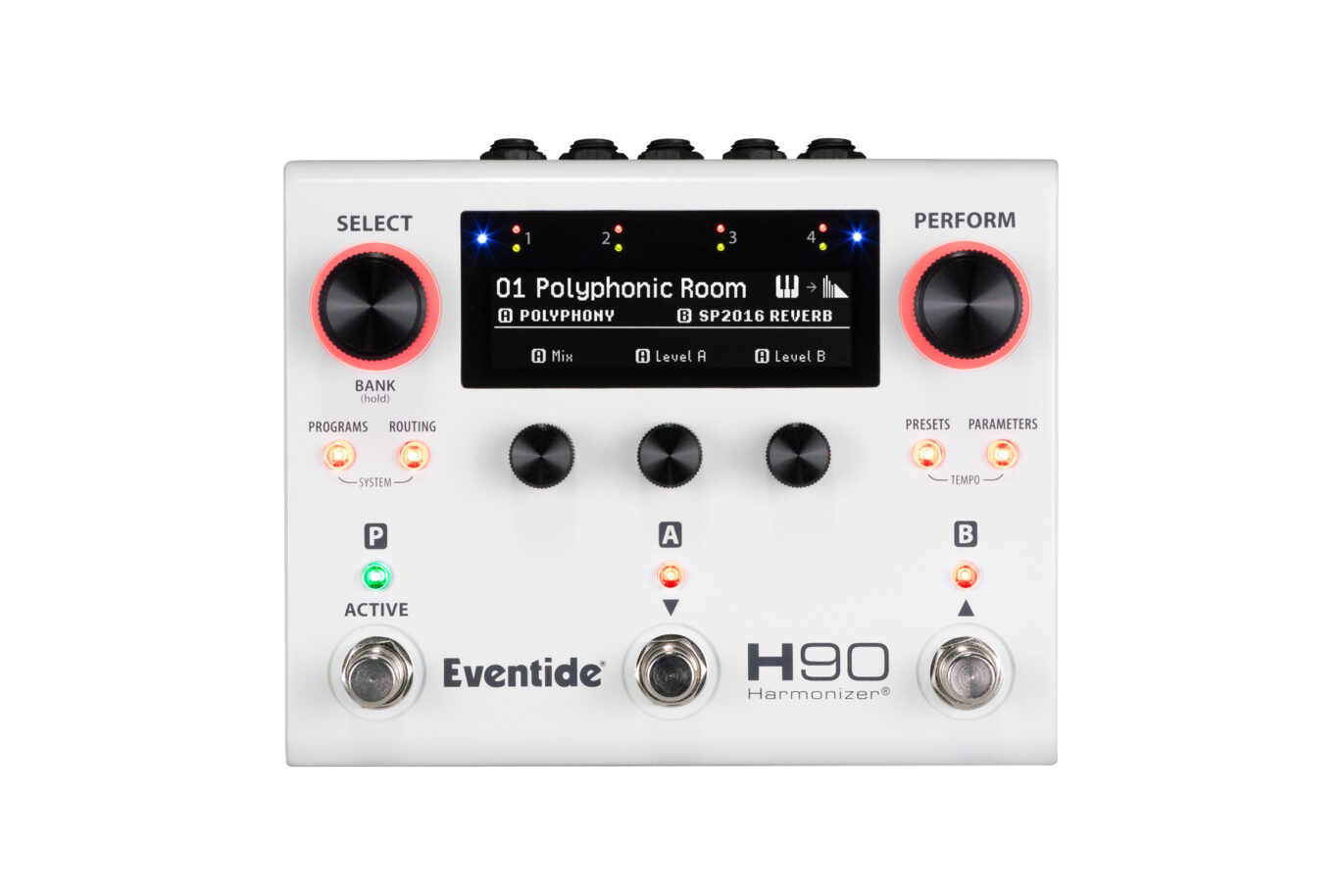

The H90 Harmonizer is a live performance powerhouse! The front panel has been reimagined with five push knobs, seven LED buttons, and a hi-res OLED display for greater hands-on control and parameter feedback.

In PERFORM mode, you get six programmable footswitches. Map functions like tap tempo, preset and insert bypass with momentary states, and performance parameters like reverb freeze, pitch flex, or delay repeat. Furthermore, you can make multiple instantaneous parameter changes with three HotSwitches.

Features

• Preloaded with 62 effect algorithms:
• 10 new effect algorithms: Polyphony, Prism Shift, Bouquet Delay, Head Space, WeedWacker, Even-Vibe, Wormhole, Instant Flanger, Instant Phaser, and SP2016 Reverb
• Includes all 52 effect algorithms from the H9 Max Harmonizer with enhanced features and improvements
• New low-latency Polyphonic Pitch Shifting with SIFT (Spectral Instantaneous Frequency Tracking) technology
• ARM-based architecture lays the foundation for new and exciting creative effects
• Use two algorithms at once per Program
• True spillover between Programs
• Route effects in series or parallel
• Instrument or line-level operation
• Two mono inserts or one stereo insert can be positioned anywhere in the signal chain
• Dual-mode for processing two independent stereo signals at once
• Five push-turn knobs for more tactile control
• Two expression inputs for pedals, up to 3-button auxiliary switches, and CV signals
• Use H90 Control software to edit Programs, create lists, and update firmware on a Mac or PC
• Built-in tuner

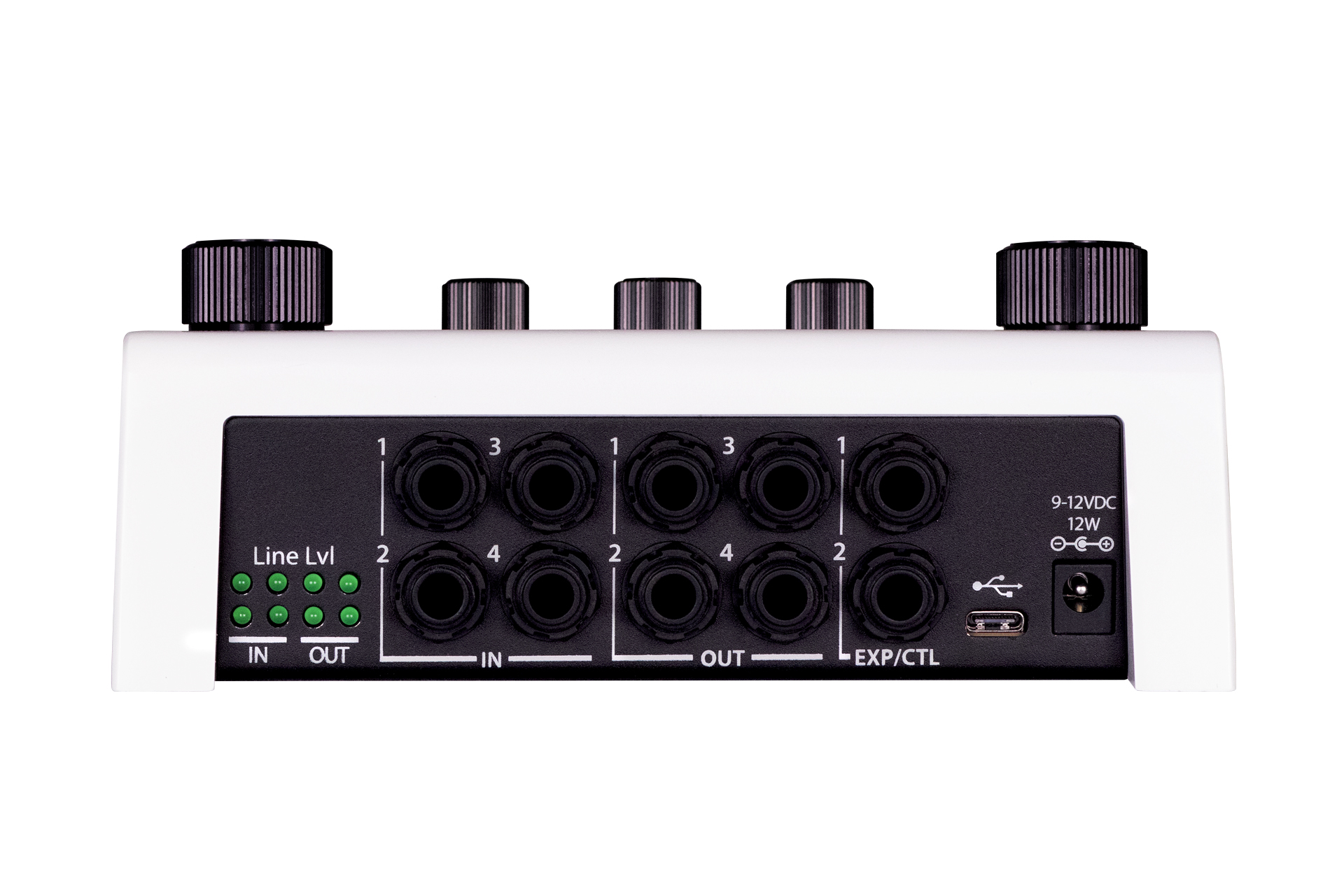

Connectors

• Inputs 1 – 4: ¼ inch TS mono jack
• Outputs 1-4: ¼ inch TS mono jack
• Exp/Ctl 1-2: ¼ inch TRS / Expression pedal or Aux Switch
• USB Type-C: Use USB 2.0 for control, updates, and MIDI
• MIDI In: Five-pin DIN (Female)
• MIDI Out/Thru: Five-pin DIN (Female)
• DC Input Jack: 5.5/2.5mm plug / Center Positive (+)

Analog I/O

• Input Impedance (Inst. Level): >600k ohms
• Input Impedance (Line Level): >80k ohms
• Output Impedance: 220 ohms
• Recommended Load Impedance: 10k ohms
• Maximum Input Level (Inst): +4dBu
• Maximum Input Level (Line): +14dBu

General

• Power: 12V DC @ 1A / Center Positive (+), 5.5/2.5mm jack
• Dimensions (Product):
• English: 6.5″ (W) x 5.25″ (D) x 2.5″ (H)
• Metric: 170 (W) x 136 (D) x 68 (H) mm
• Dimensions (Package):
• English: 10.5″ (W) x 7″ (D) x 3″ (H)
• Metric: 265 (W) x 180 (D) x 75 (H) mm
• Weight (Product): 1.85 lbs / 0.84 kg
• Weight (Package): 3 lbs / 1.36 kg
• Shipping Contents: H90, Eventide Sticker, 4x Rubber feet, Guitar pick, Universal power supply with plugs (US, UK, EU, AUS), USB A to Type-C cable, Quick Reference Guide
