Keyboard

Number of Keys

61

Tipo

FSB keyboard, initial touch

Tone Generation

Tone Generating Technology

AWM2, AWM (Organ Flutes)

Polyphony

Number of Polyphony (Max.)

128

Number of Live Set Sound

160 (Preset Live Set Sounds: 80)

Number of Voices

363

Types

Insertion Effect

Drive 1 system (5 types) / Effect 2 systems (1: 36 types, 2: 36 types)

Delay

4 types

Reverb

3 types

Master EQ

3-band

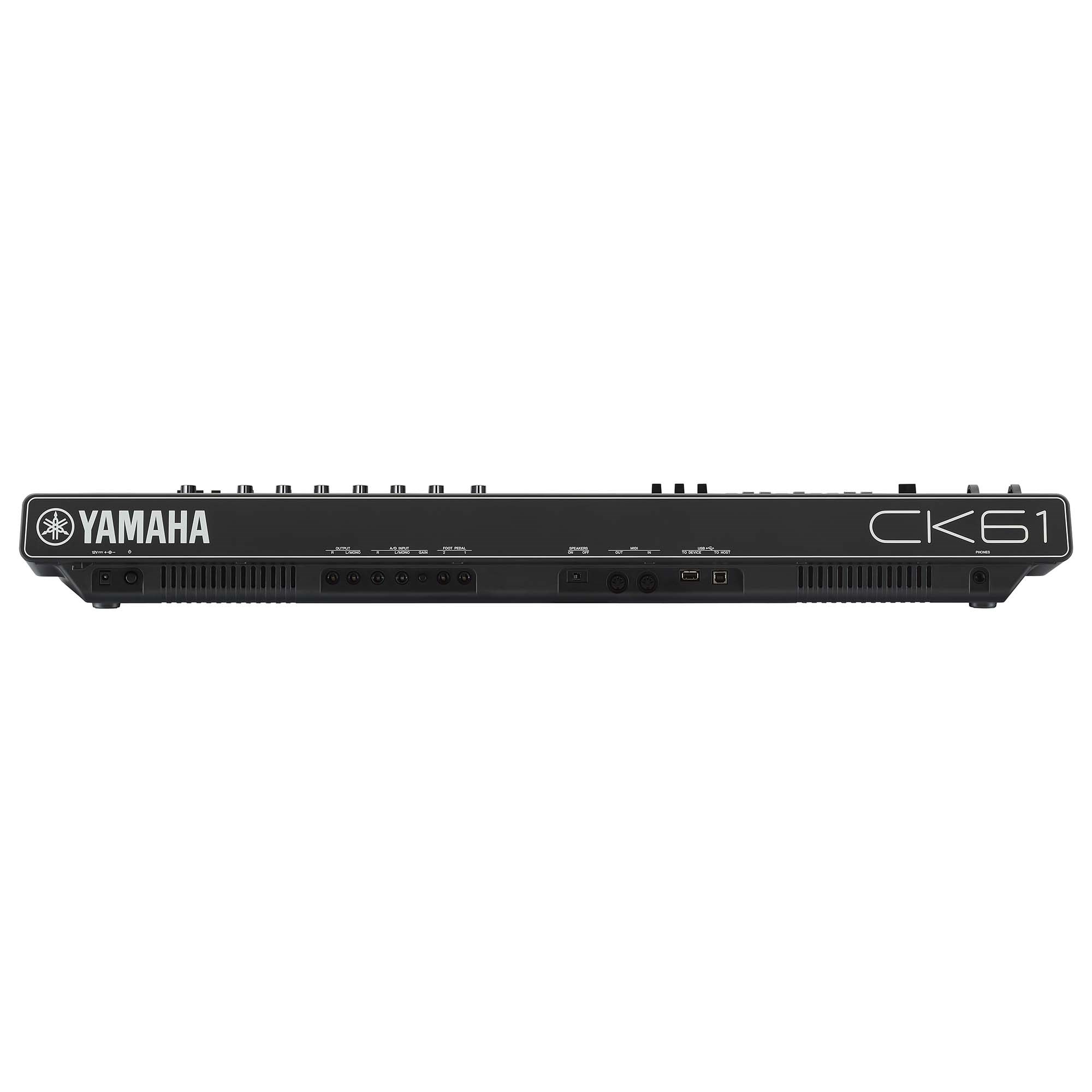

Connectors

Line Out

[L/MONO]/[R] (6.3 mm, standard phone jacks, unbalanced)

Headphones

[PHONES] (6.3 mm, standard stereo phone jack)

Foot Controller

FOOT PEDAL [1]/[2]

MIDI

MIDI [IN]/[OUT]

USB

USB [TO HOST]/[TO DEVICE]

DC IN

[DC IN]

Connectors

A/D INPUT

[L/MONO]/[R] (6.3 mm, standard phone jacks)

Bluetooth

Bluetooth version

4.1

Supported profile

A2DP

Compatible codec

SBC

Wireless output

Bluetooth class 2

Maximum communication distance

about 10 m

Radio Frequency (Operational Frequency)

2401–2481 MHz

Maximum output power (EIRP)

4 dBm

Type of modulation

FHSS

USB audio interface

[Sampling Frequency = 44.1 kHz] In: 2 channels (1 stereo channel) Out: 2 channels (1 stereo channel)

Amplifiers

6 W × 2

Speakers

(12 cm × 6 cm) × 2, Switchable ON/OFF

Display

Full Dot LCD (128 x 64 dots)

Included accessories

AC adaptor*, Owner’s Manual *May be included depending on your locale

Power Supply

Adaptors

PA-150B or an equivalent recommended by Yamaha (Output: DC 12V, 1.5 A)

Batteries

Eight “AA” size alkaline (LR6) or Ni-MH rechargeable batteries

Power Consumption

11 W (When using PA-150B AC adaptor)

Dimensions

Width

910 mm (35-13/16")

Height

109 mm (4-5/16")

Depth

291 mm (11-7/16")

Weight

Weight

5.6 kg (12 lb 6 oz) (not including batteries)

Packing Box

Width

1,100 mm (43-5/16")

Height

240 mm (9-7/16")

Depth

410 mm (16-1/8")
